Graphics

R Foundations 2024

Ella Kaye, Department of Statistics

November 18, 2024

Overview

  • Plots in base R

  • ggplot2

  • Tables

Packages

library(ggplot2) # for later in the session
library(palmerpenguins)

Plots in base R

No frills

Base R graphics are useful for quick, exploratory “no-frills” plots.

(For anything better looking or more complex or where you want more control, use ggplot2)

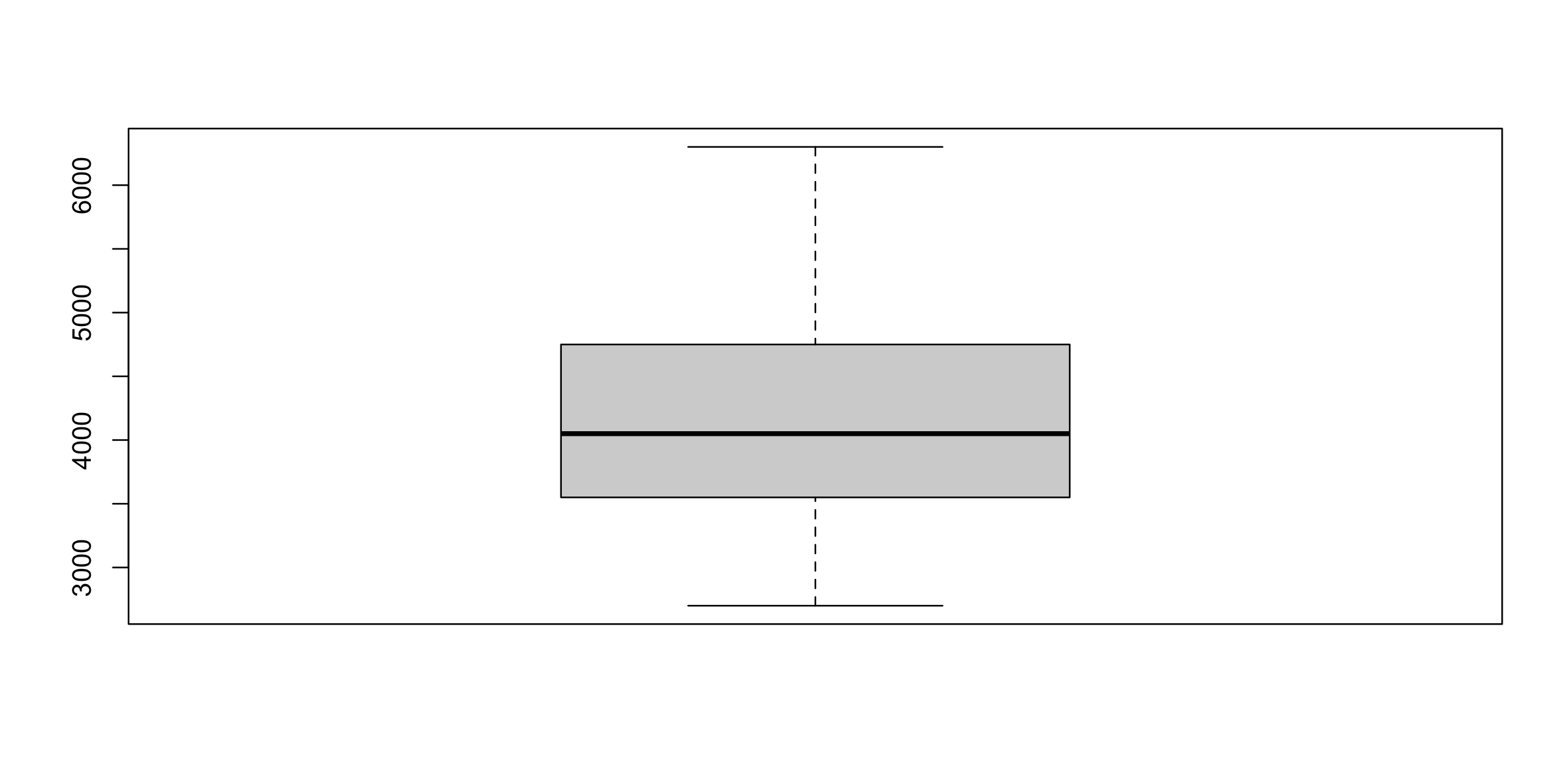

Boxplots

boxplot(penguins$body_mass_g)

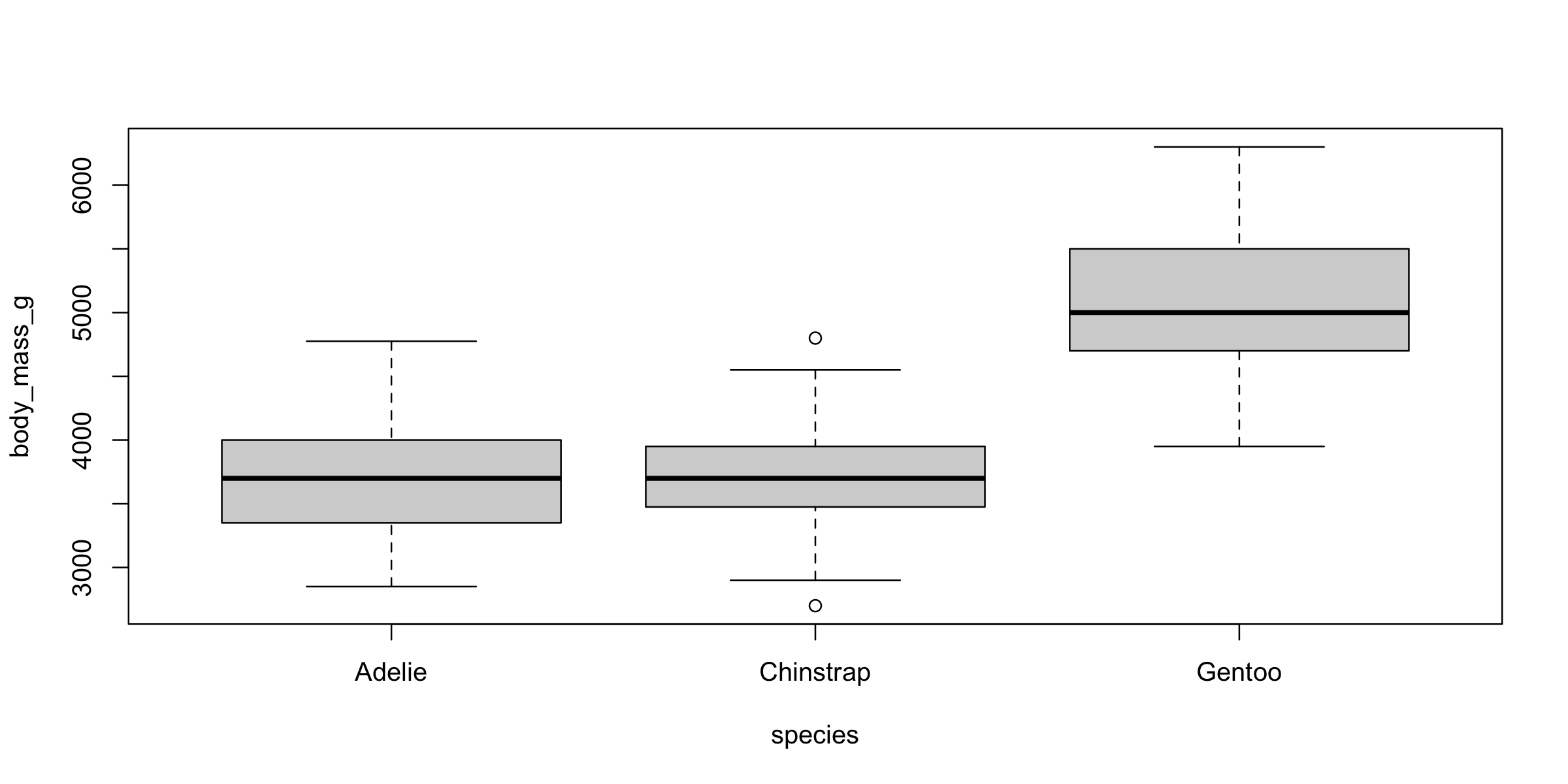

with(penguins, boxplot(body_mass_g ~ species))

Histogram/Density

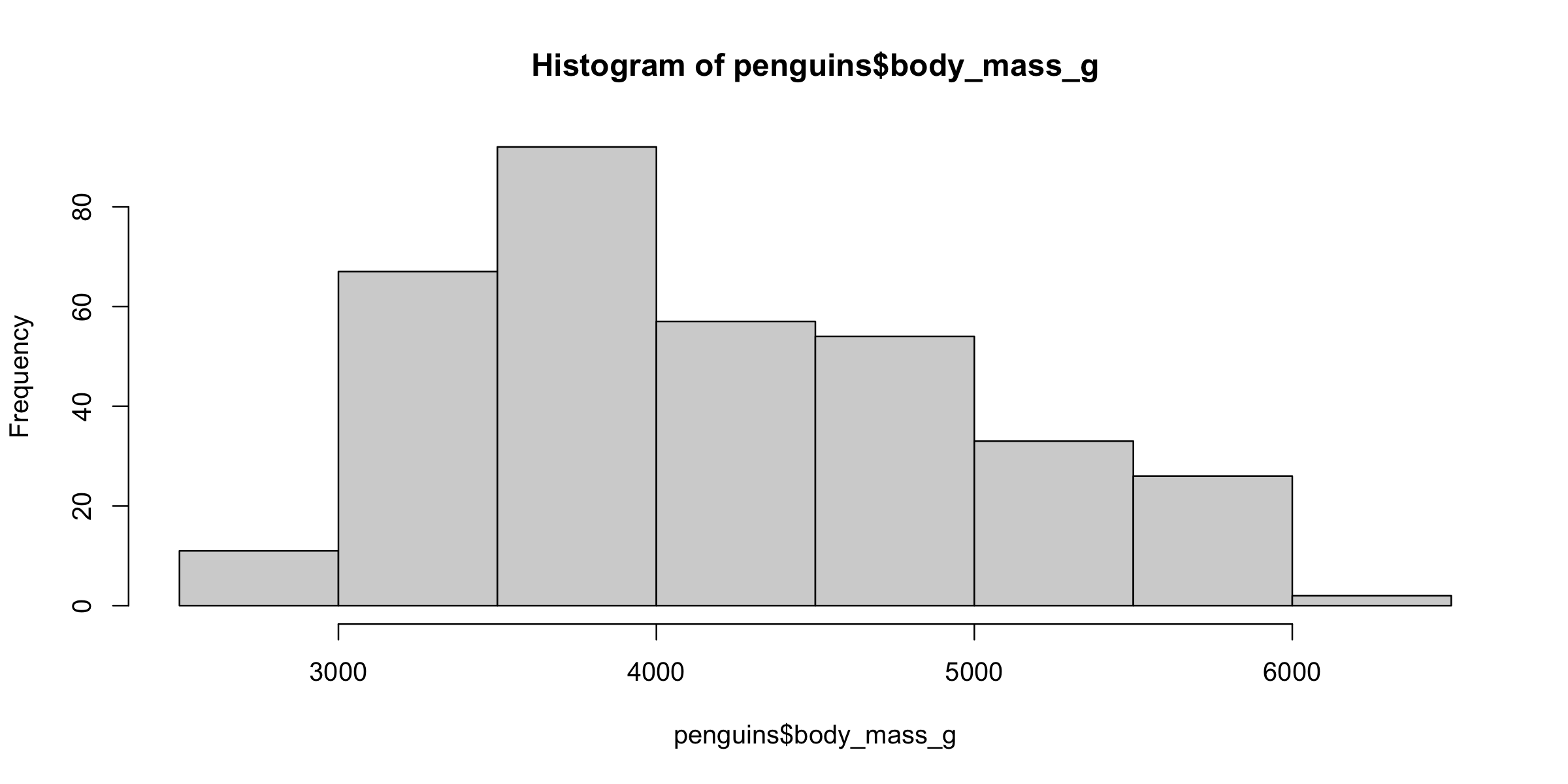

hist(penguins$body_mass_g)

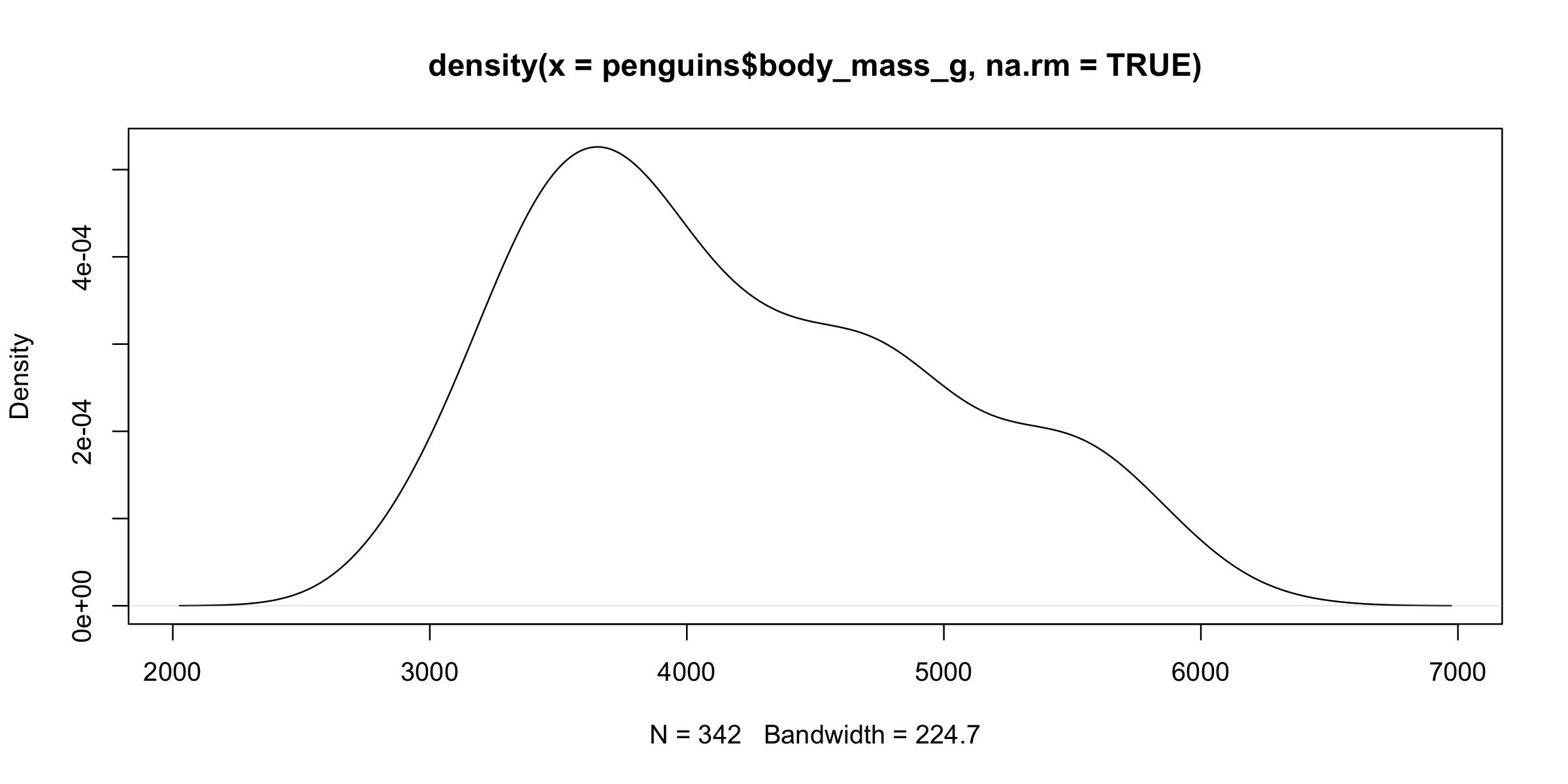

plot(density(penguins$body_mass_g, na.rm = TRUE))

Scatterplots

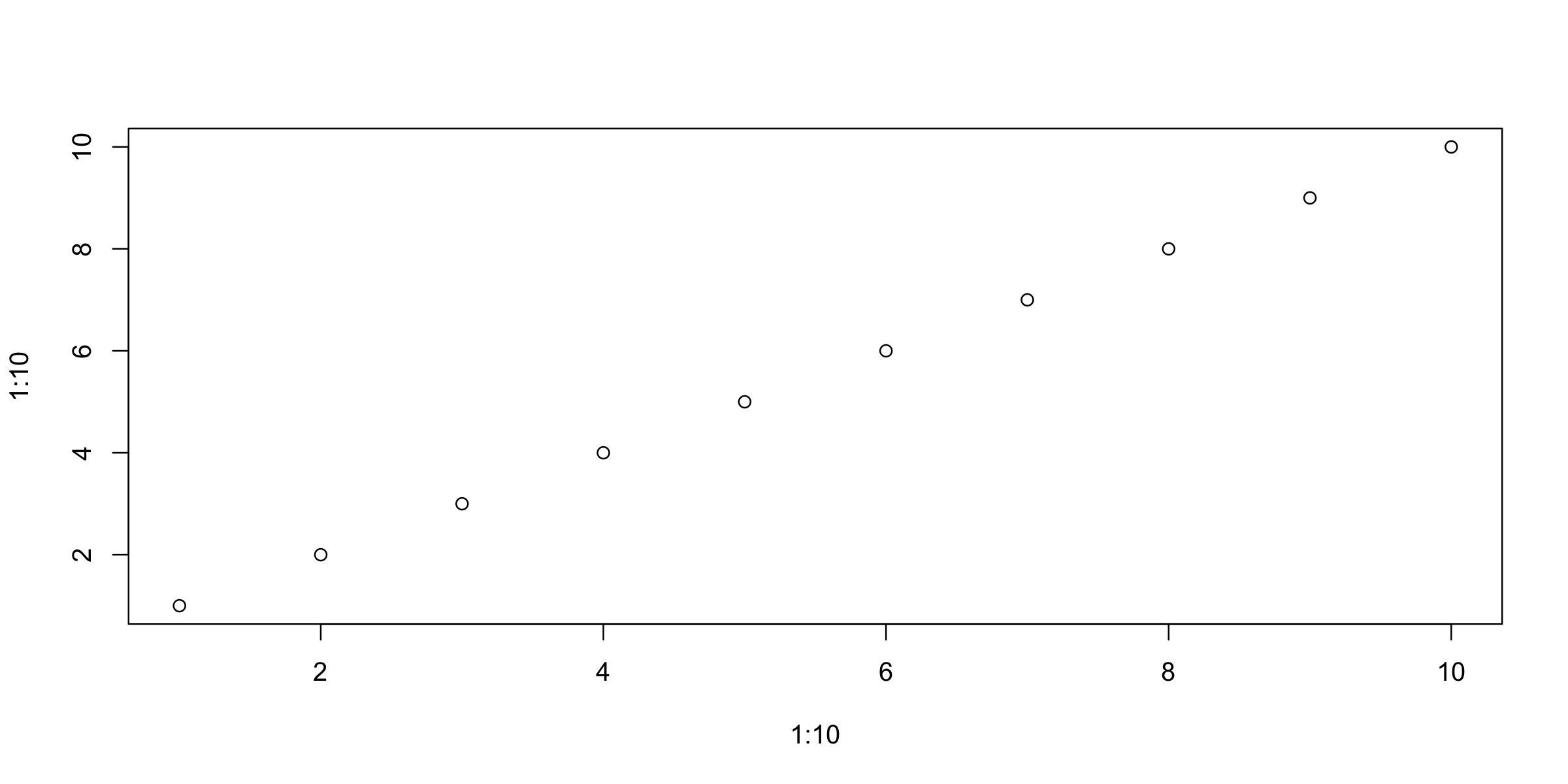

plot(1:10, 1:10)

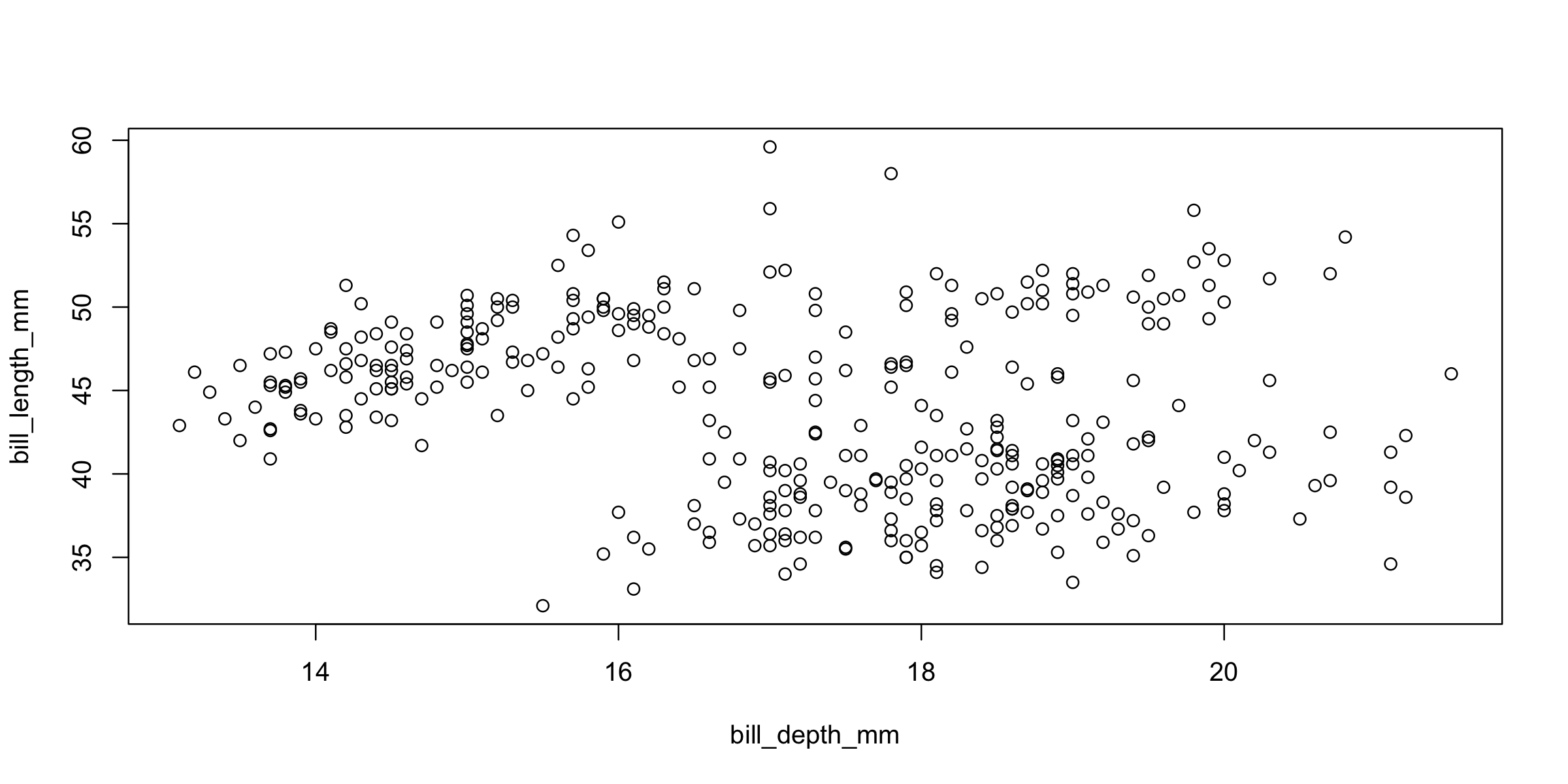

plot(bill_length_mm ~ bill_depth_mm,
     data = penguins)

Plot methods

Many different objects in R have defined plot methods:

methods(plot)
 [1] plot,ANY-method     plot,color-method   plot.acf*
 [4] plot.data.frame*    plot.decomposed.ts* plot.default
 [7] plot.dendrogram*    plot.density*       plot.ecdf
[10] plot.factor*        plot.formula*       plot.function
[13] plot.ggplot*        plot.gtable*        plot.hcl_palettes*
[16] plot.hclust*        plot.histogram*     plot.HoltWinters*
[19] plot.isoreg*        plot.lm*            plot.medpolish*
[22] plot.mlm*           plot.ppr*           plot.prcomp*
[25] plot.princomp*      plot.profile*       plot.profile.nls*
[28] plot.R6*            plot.raster*        plot.spec*
[31] plot.stepfun        plot.stl*           plot.table*
[34] plot.transform*     plot.ts             plot.tskernel*
[37] plot.TukeyHSD*
see '?methods' for accessing help and source code

e.g. if you call plot on an object of type lm, it will call plot.lm

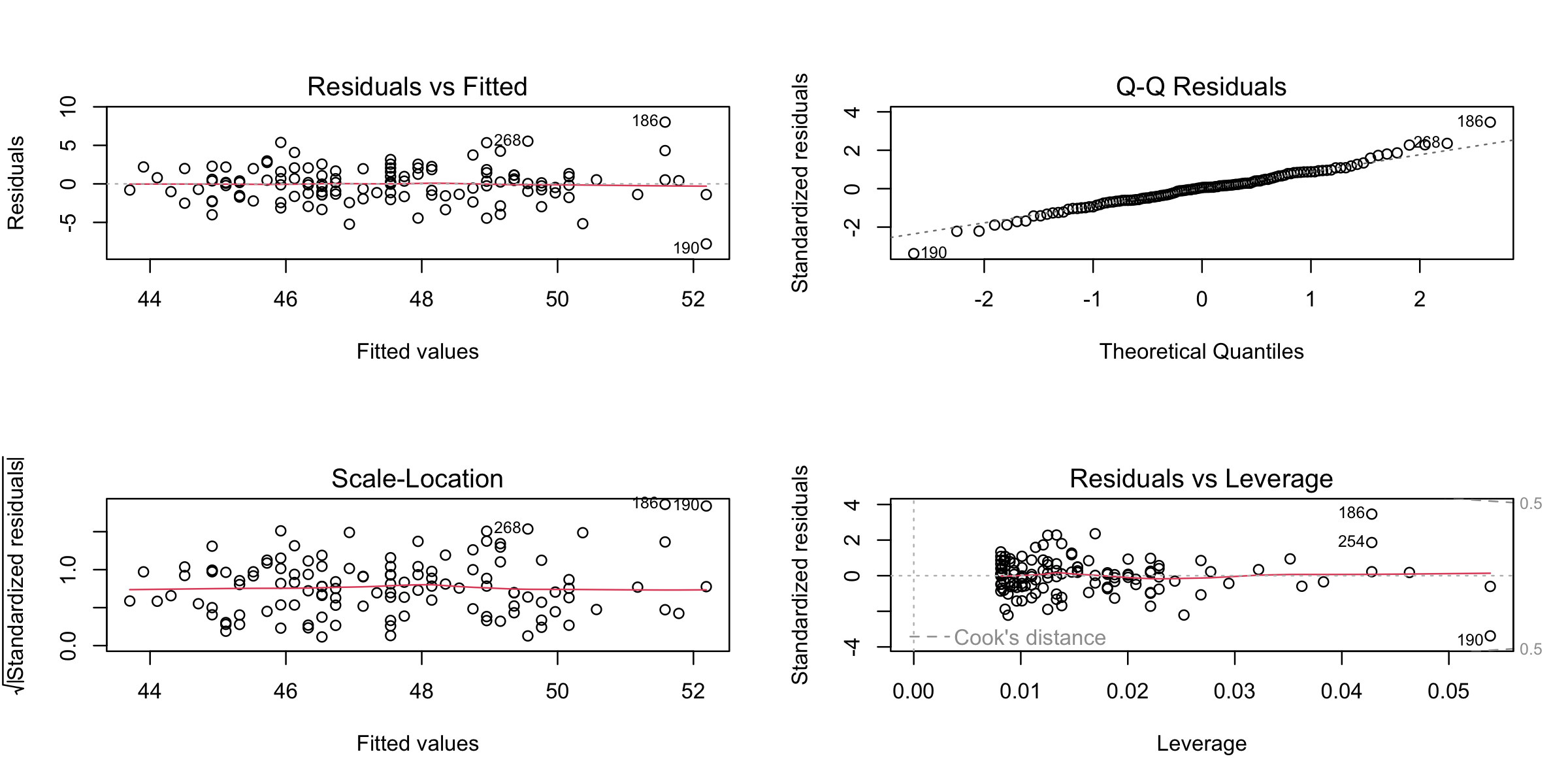

Linear model diagnostic fits

fit <- lm(bill_length_mm ~ bill_depth_mm,
          data = penguins, subset = species == "Gentoo")

par(mfrow=c(2,2)) # see all four plots together
plot(fit)

Your turn!

From the starting point of plot(1:10, 1:10), experiment with the arguments type and pch. See ?plot

Can you create a plot with triangular points linked by lines?

Can you do the same with the lines() function? What are the similarities and differences?

ggplot2

Intro to ggplot2

From https://ggplot2.tidyverse.org:

R has several systems for making graphs, but ggplot2 is one of the most elegant and most versatile. ggplot2 implements the grammar of graphics, a coherent system for describing and building graphs. With ggplot2, you can do more faster by learning one system and applying it in many places.

From https://r4ds.had.co.nz/data-visualisation.html:

You provide the data, tell ggplot2 how to map variables to aesthetics, what graphical primitives to use, and it takes care of the details.

ggplot2 usage

  • ggplot2 is part of the tidyverse.

  • It has been around for over 10 years and is used by hundreds of thousands of people.

  • It can take some getting used to, but is worth the investment to learn properly

ggplot2 key components

Every ggplot2 plot has three key components:

  • Data (typically in a data frame),

  • A set of aesthetic mappings between variables in the data and visual properties, and

  • At least one layer which describes how to render each observation. Layers are usually created with a geom_ function.

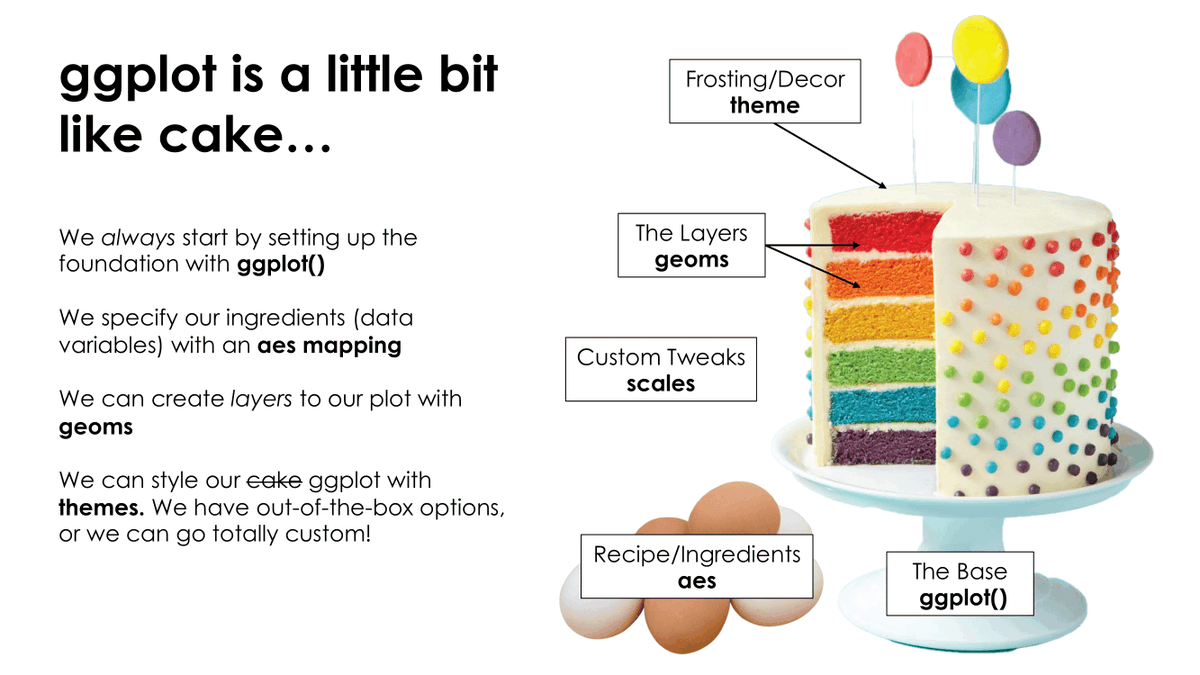

Cake!

Image credit: Tanya Shapiro

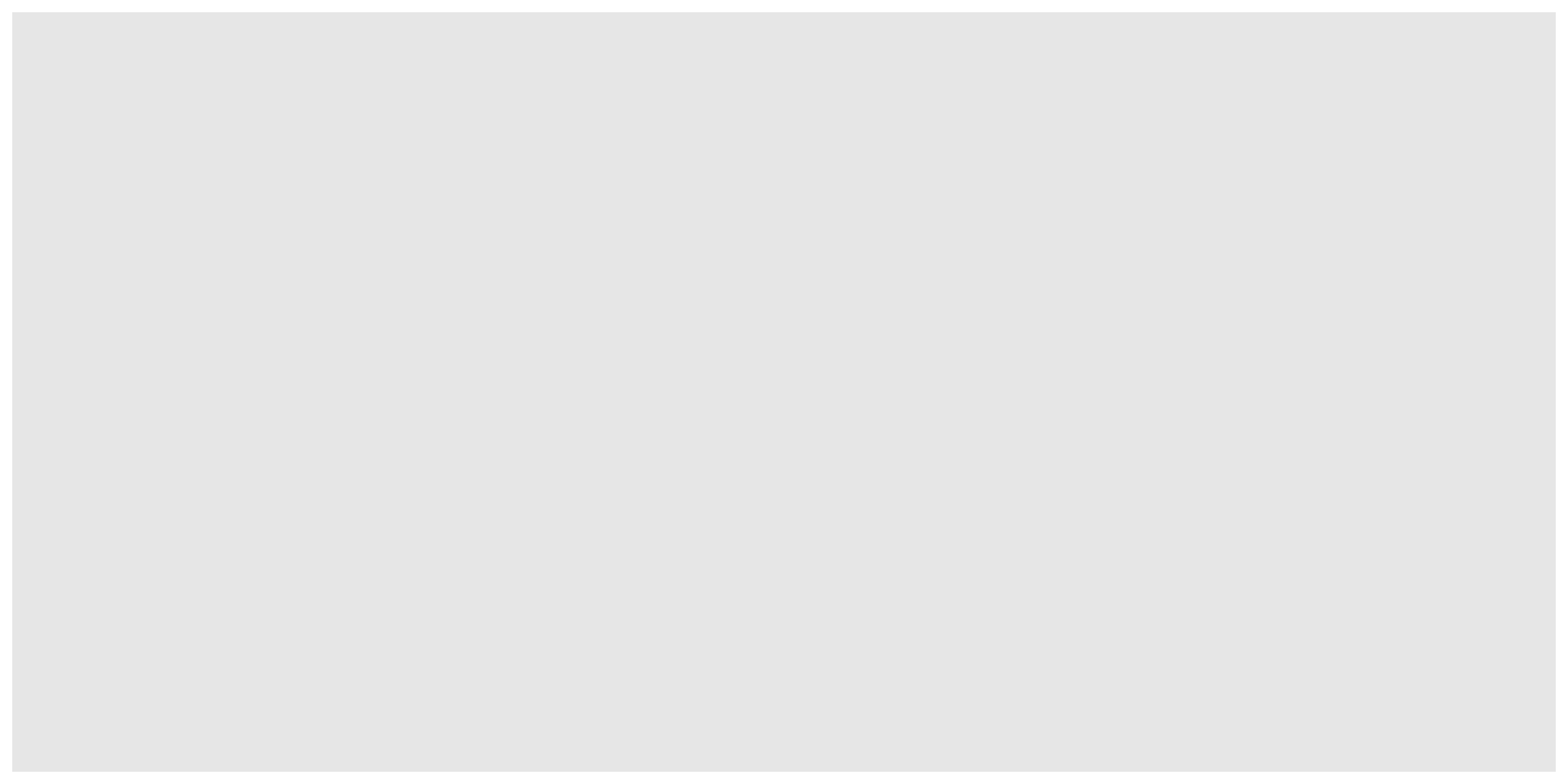

Initiate with data

Package is ggplot2 but function is ggplot()

ggplot(penguins)

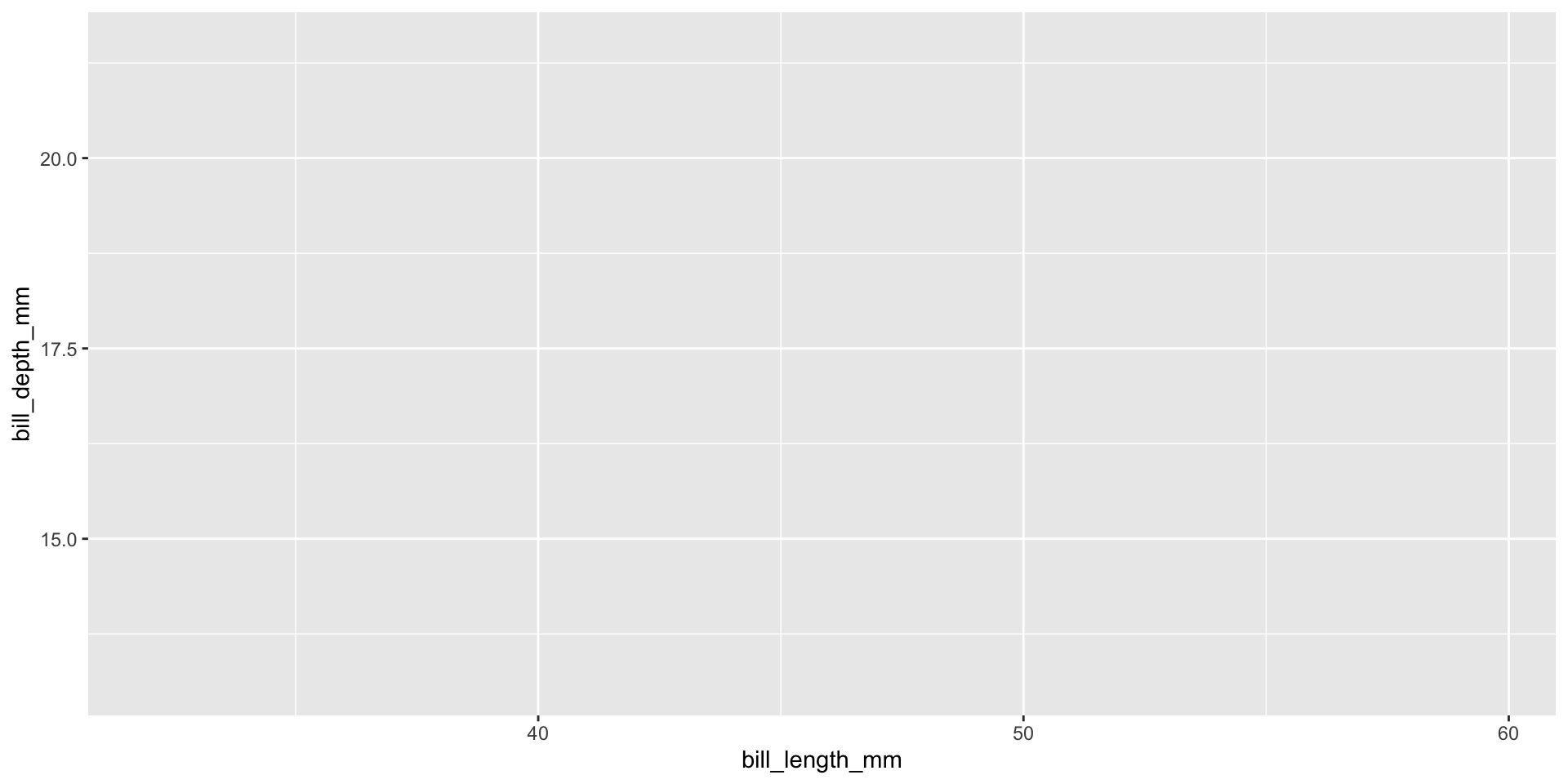

Add aesthetics

ggplot(penguins, aes(x = bill_length_mm, y = bill_depth_mm))

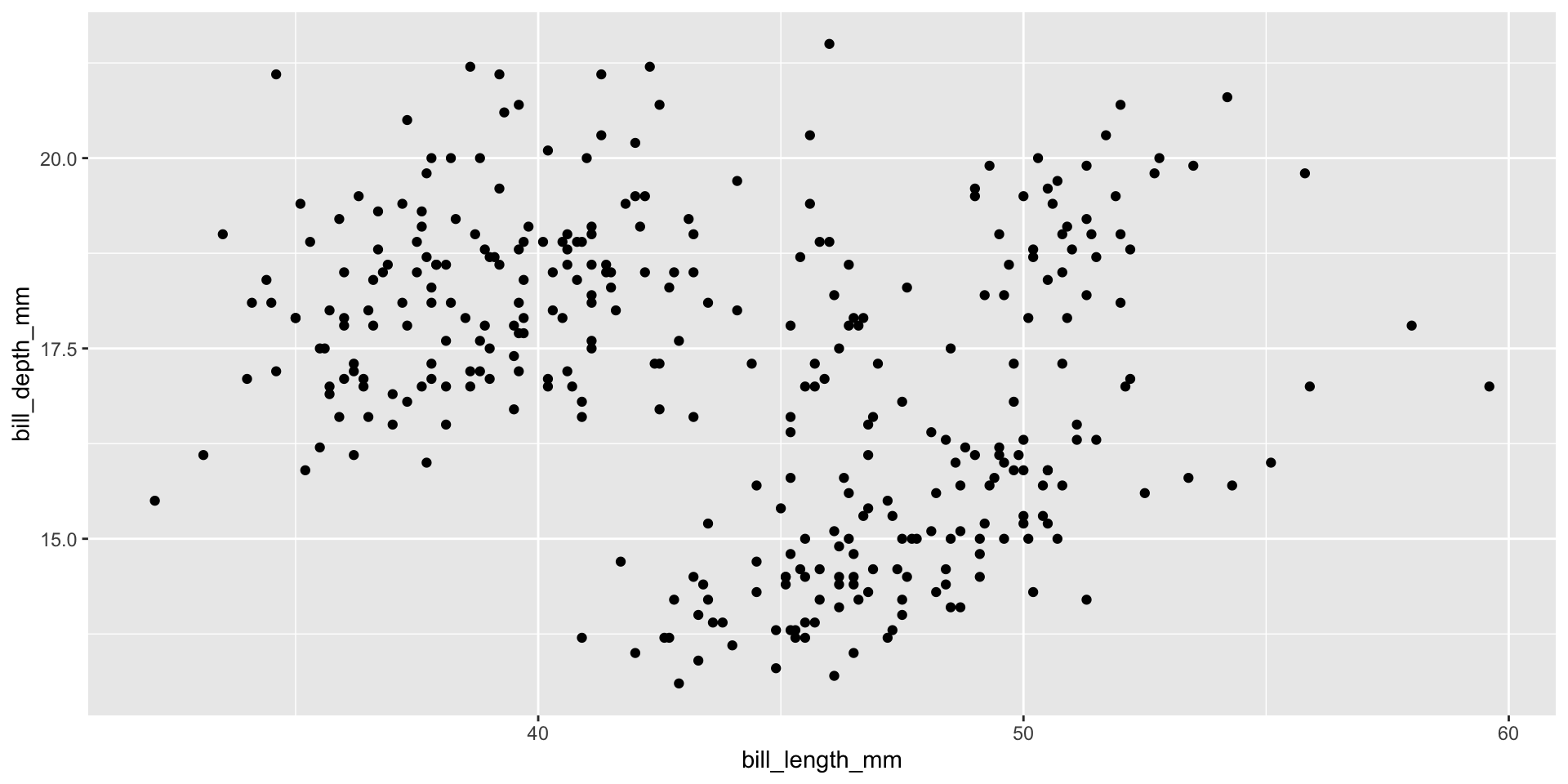

Add points

Layers are added with + (not %>% or |>)

ggplot(penguins, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point()

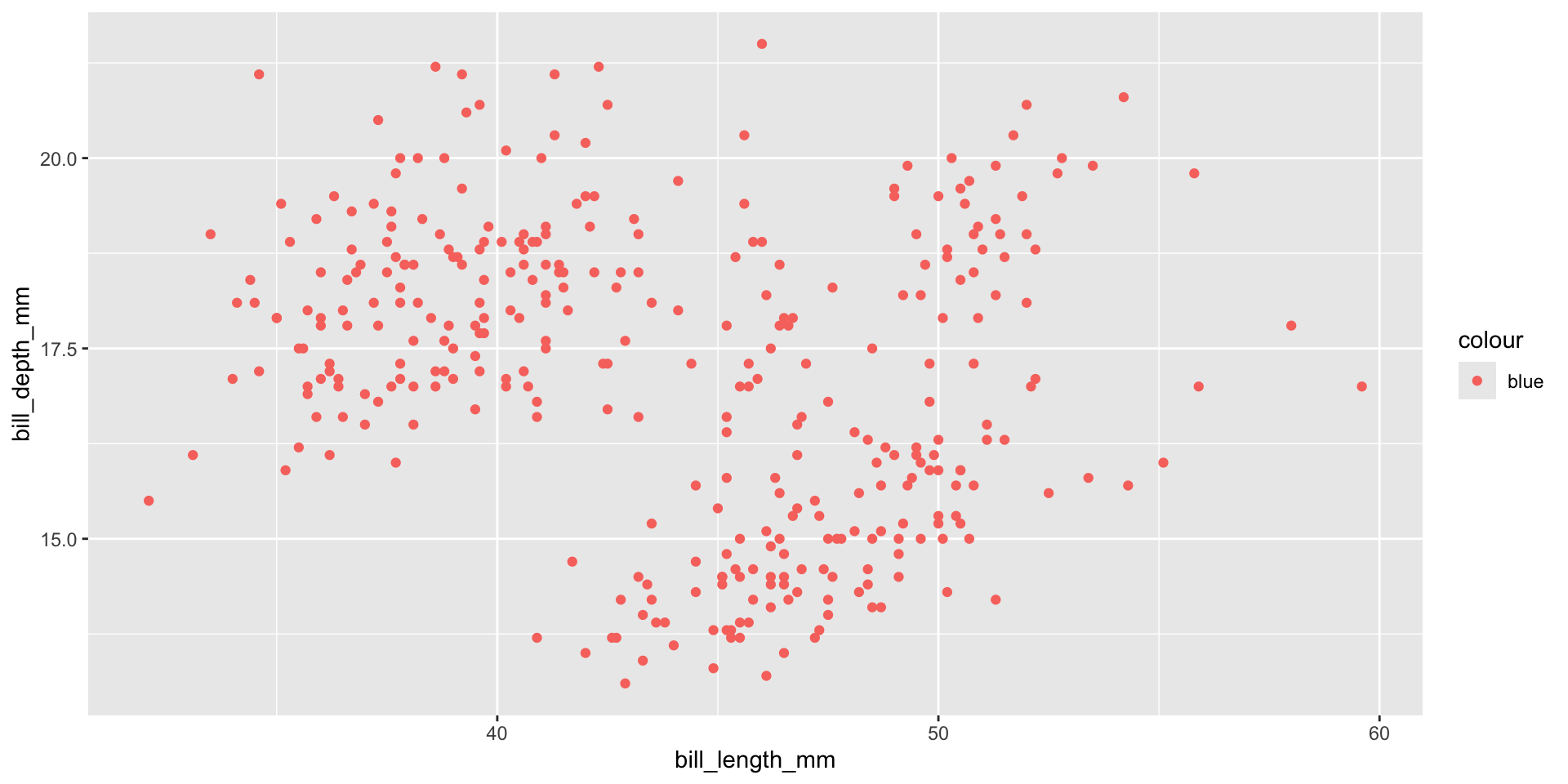

Careful what goes in aes()

ggplot(penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm)) +
  geom_point(aes(color = "blue"))

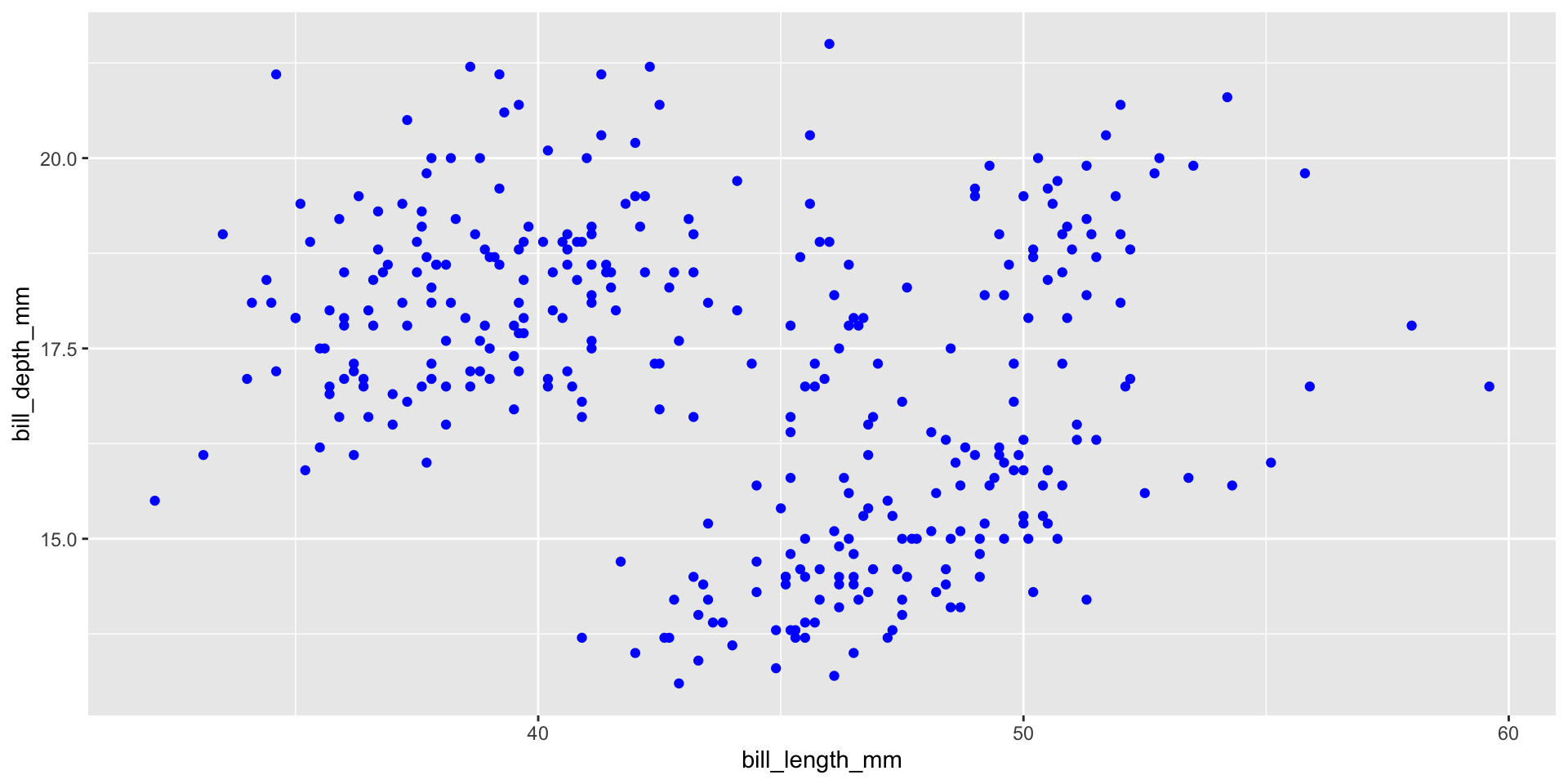

ggplot(penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm)) +
  geom_point(color = "blue")

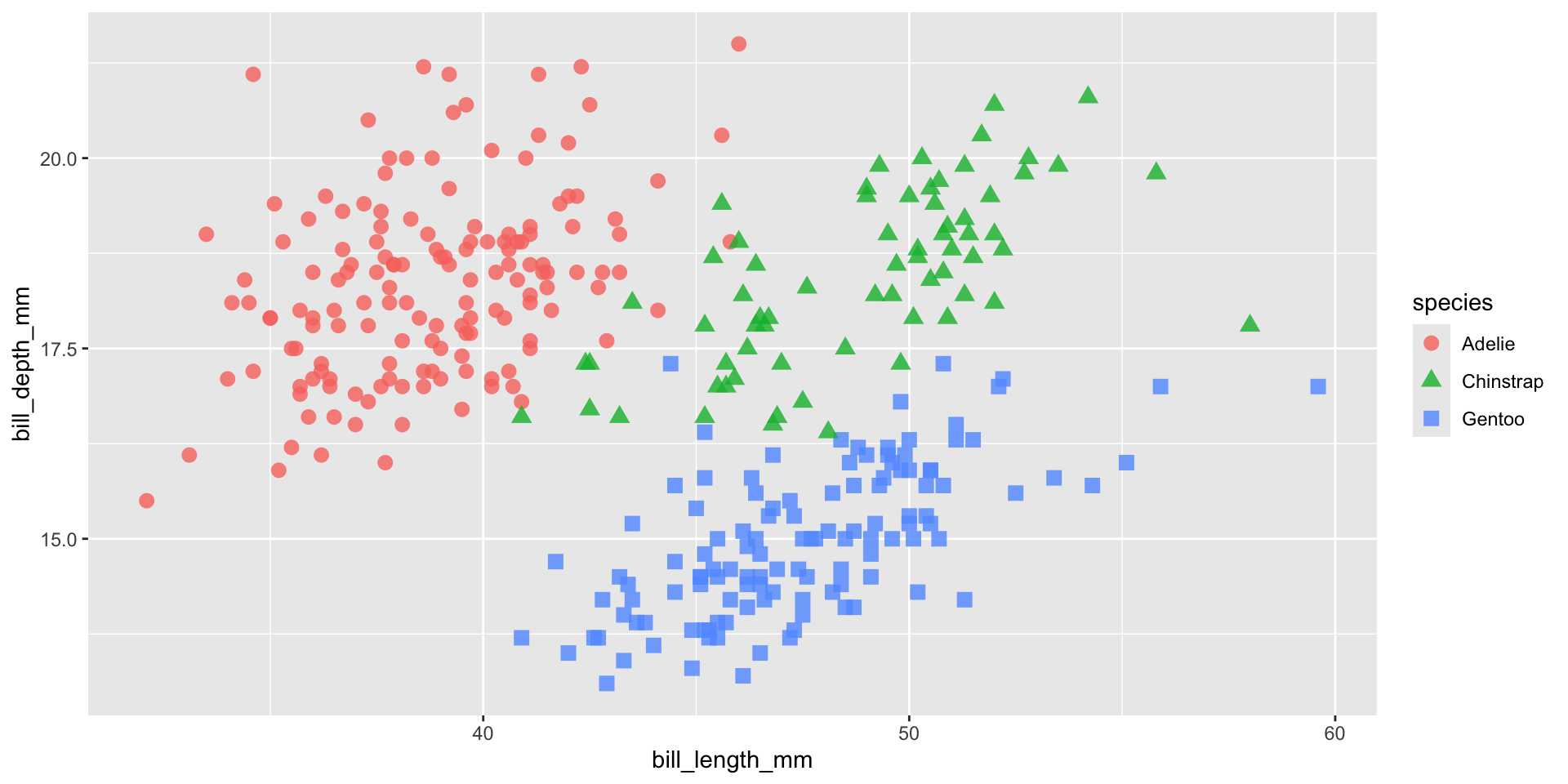

When you do want to map a colour to data

ggplot(data = penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           group = species)) +
  geom_point(aes(color = species,
                 shape = species),
             size = 3,
             alpha = 0.8)

Note that color and shape are inside aes() but size and alpha are outside.

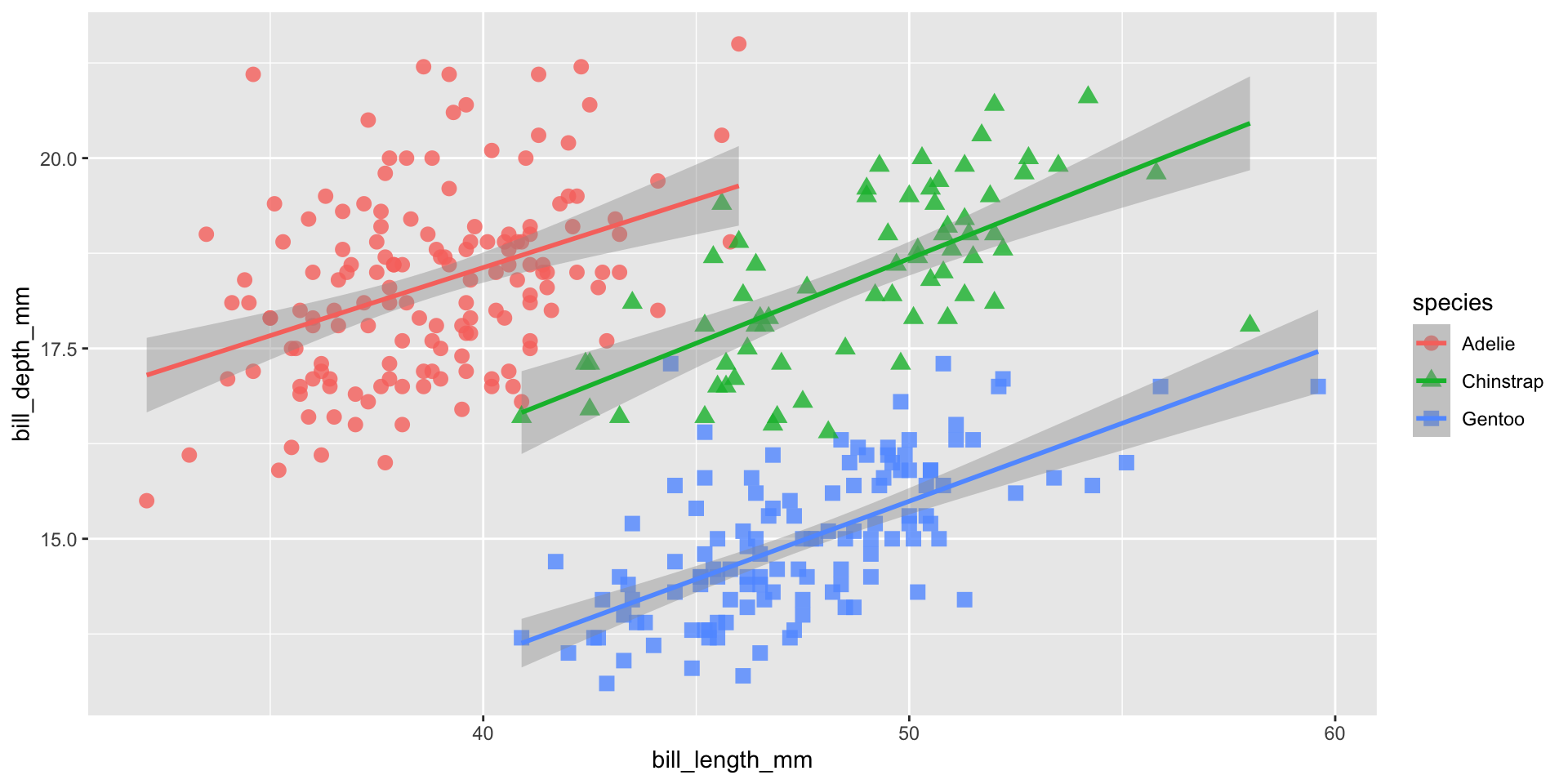

Add additional geoms

ggplot(data = penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           group = species)) +
  geom_point(aes(color = species,
                 shape = species),
             size = 3,
             alpha = 0.8) +
  geom_smooth(method = "lm", aes(color = species))

Scales in ggplot2

Scales in ggplot2 control the mapping from data to aesthetics. They take your data and turn it into something that you can see, like size, colour, position or shape. They also provide the tools that let you interpret the plot: the axes and legends.

Three groups of scales:

  • position scales and axes
  • colour scales and legends
  • scales for other aesthetics

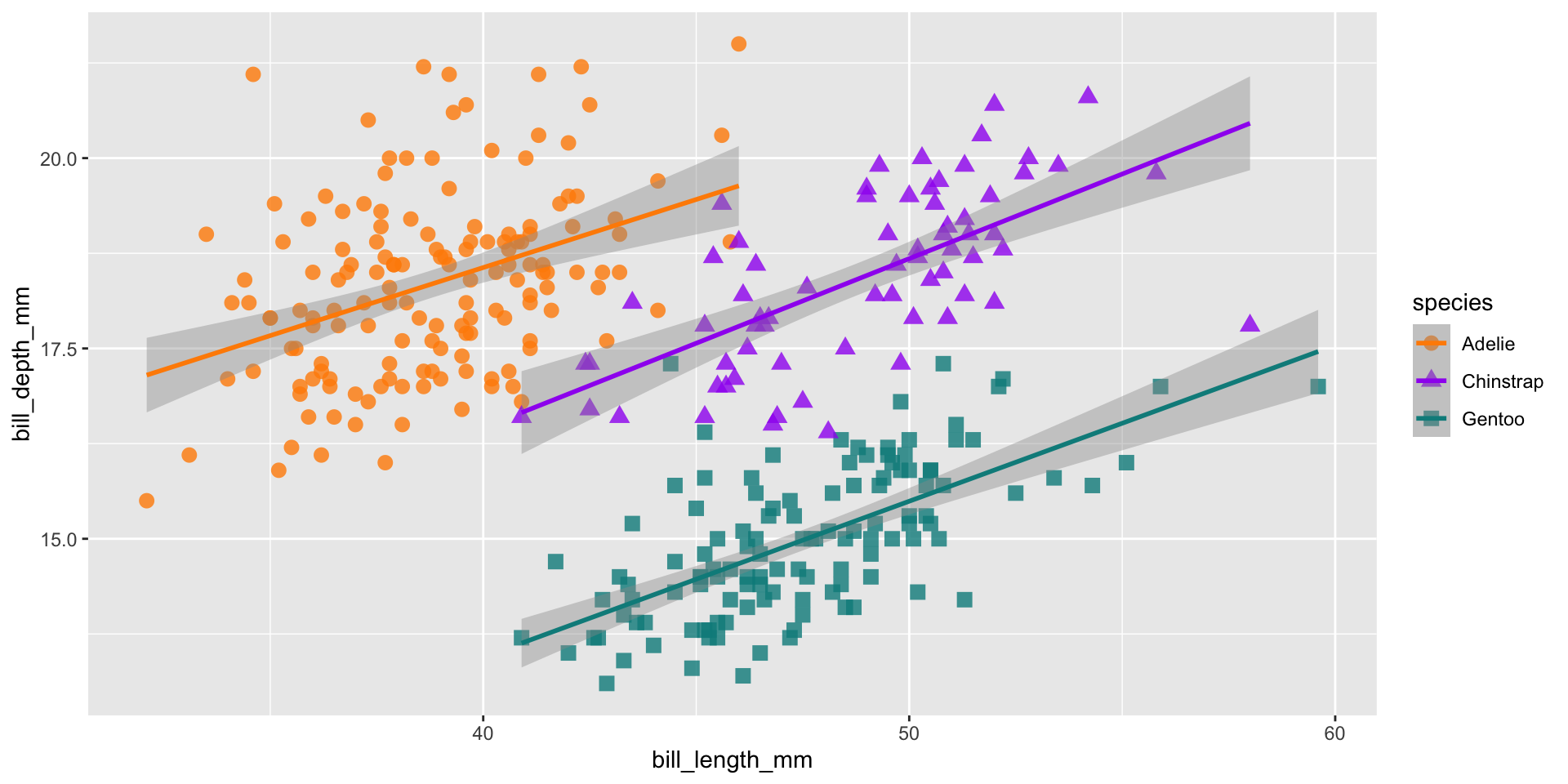

Add a colour scale

ggplot(data = penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           group = species)) +
  geom_point(aes(color = species,
                 shape = species),
             size = 3,
             alpha = 0.8) +
  geom_smooth(method = "lm", aes(color = species)) +
  scale_color_manual(values = c("darkorange","purple","cyan4"))

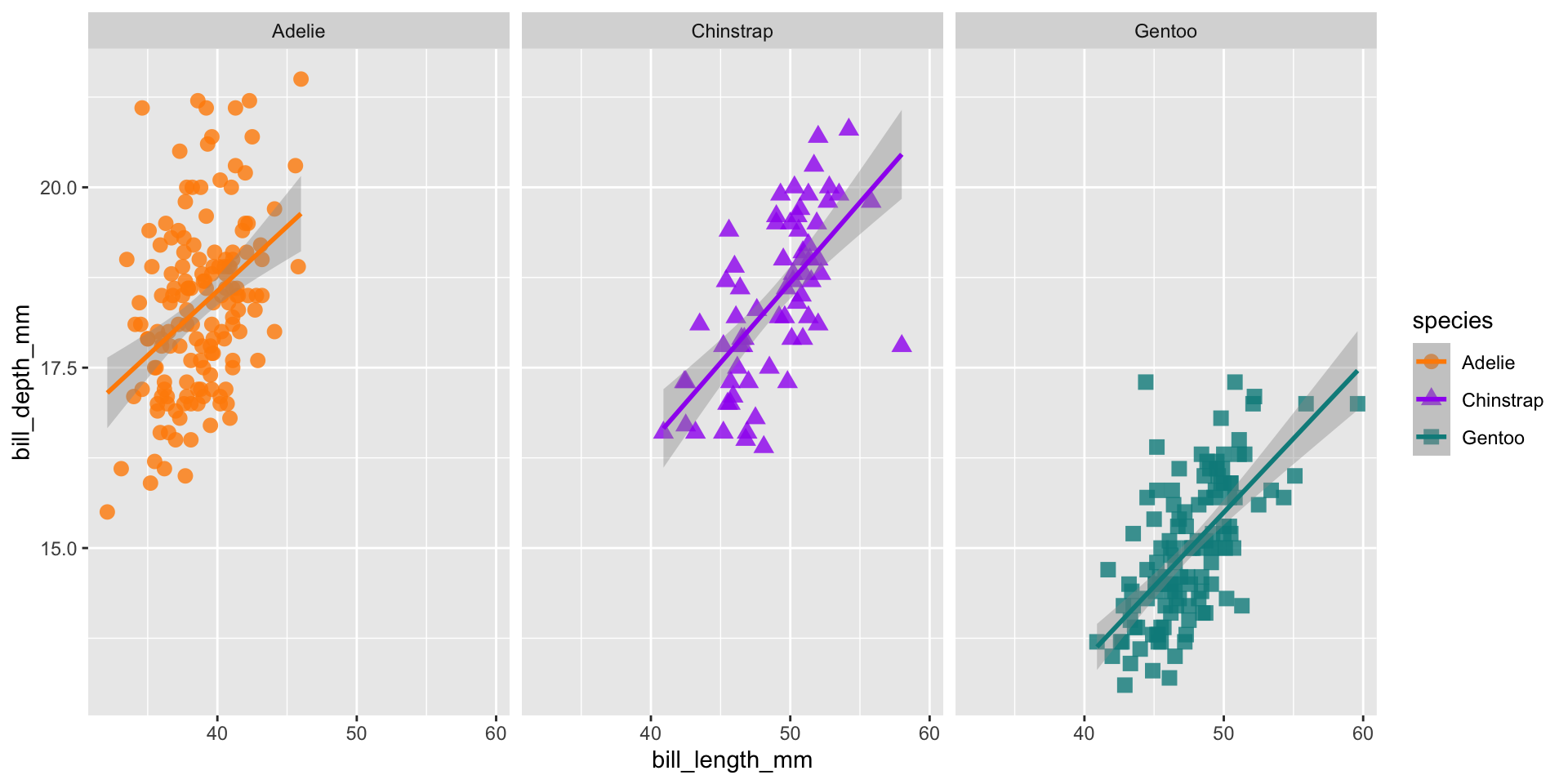

Facets

ggplot(data = penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           group = species)) +
  geom_point(aes(color = species,
                 shape = species),
             size = 3,
             alpha = 0.8) +
  geom_smooth(method = "lm", aes(color = species)) +
  scale_color_manual(values = c("darkorange","purple","cyan4")) +
  facet_wrap(~species)

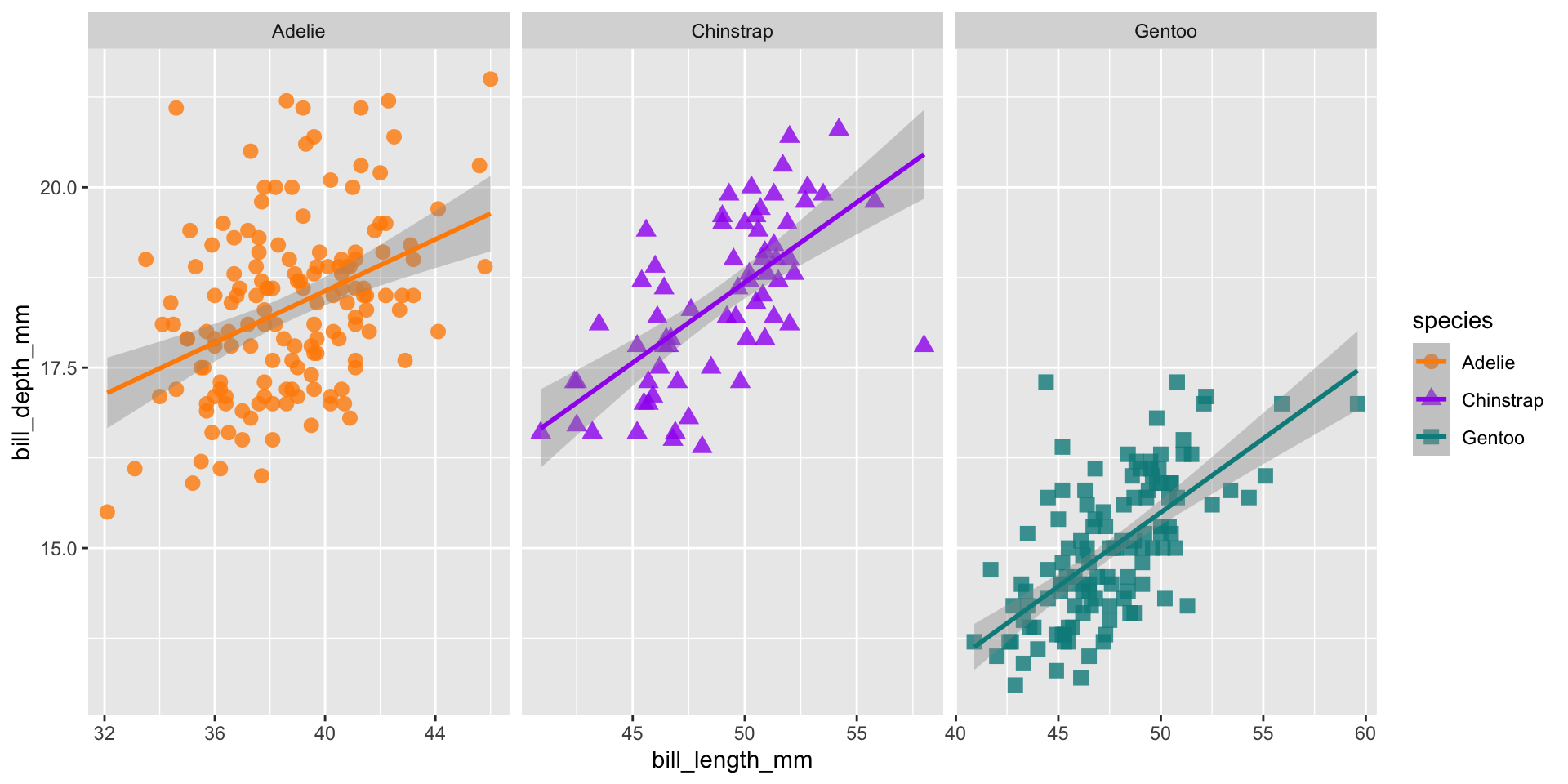

ggplot(data = penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           group = species)) +
  geom_point(aes(color = species,
                 shape = species),
             size = 3,
             alpha = 0.8) +
  geom_smooth(method = "lm", aes(color = species)) +
  scale_color_manual(values = c("darkorange","purple","cyan4")) +
  facet_wrap(~species, scales = "free_x")

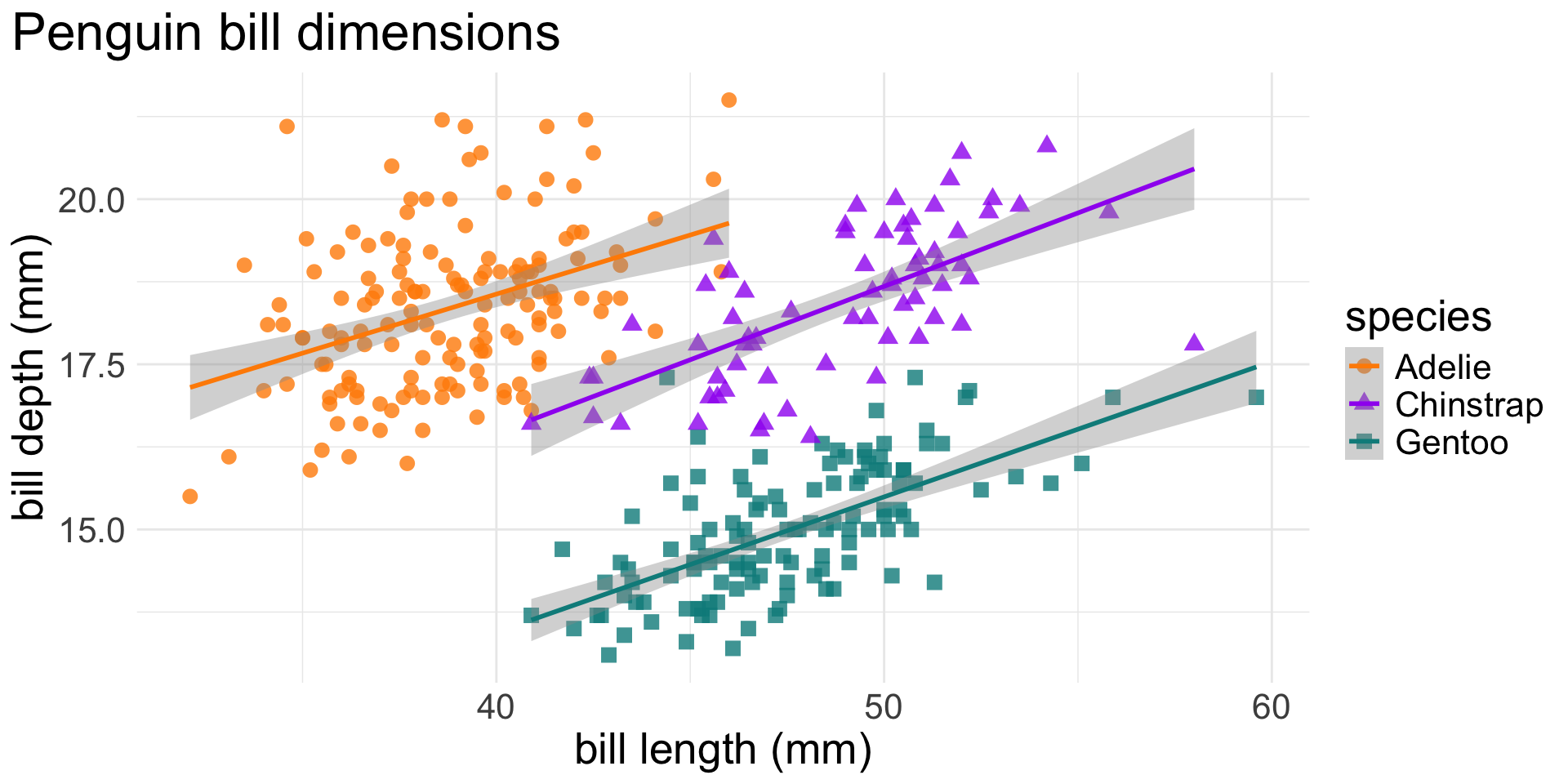

Add theme elements

ggplot(data = penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           group = species)) +
  geom_point(aes(color = species,
                 shape = species),
             size = 3,
             alpha = 0.8) +
  geom_smooth(method = "lm", aes(color = species)) +
  scale_color_manual(values = c("darkorange","purple","cyan4")) +
  labs(title = "Penguin bill dimensions",
       x = "bill length (mm)",
       y = "bill depth (mm)") +
  theme_minimal() +
  theme(plot.title.position = "plot",
        text = element_text(size = 20))

Your turn!

Recreate the base R plots from the first part of this session in ggplot2.

You may find the list of available geoms (and their help pages) useful:

https://ggplot2.tidyverse.org/reference/index.html#layers

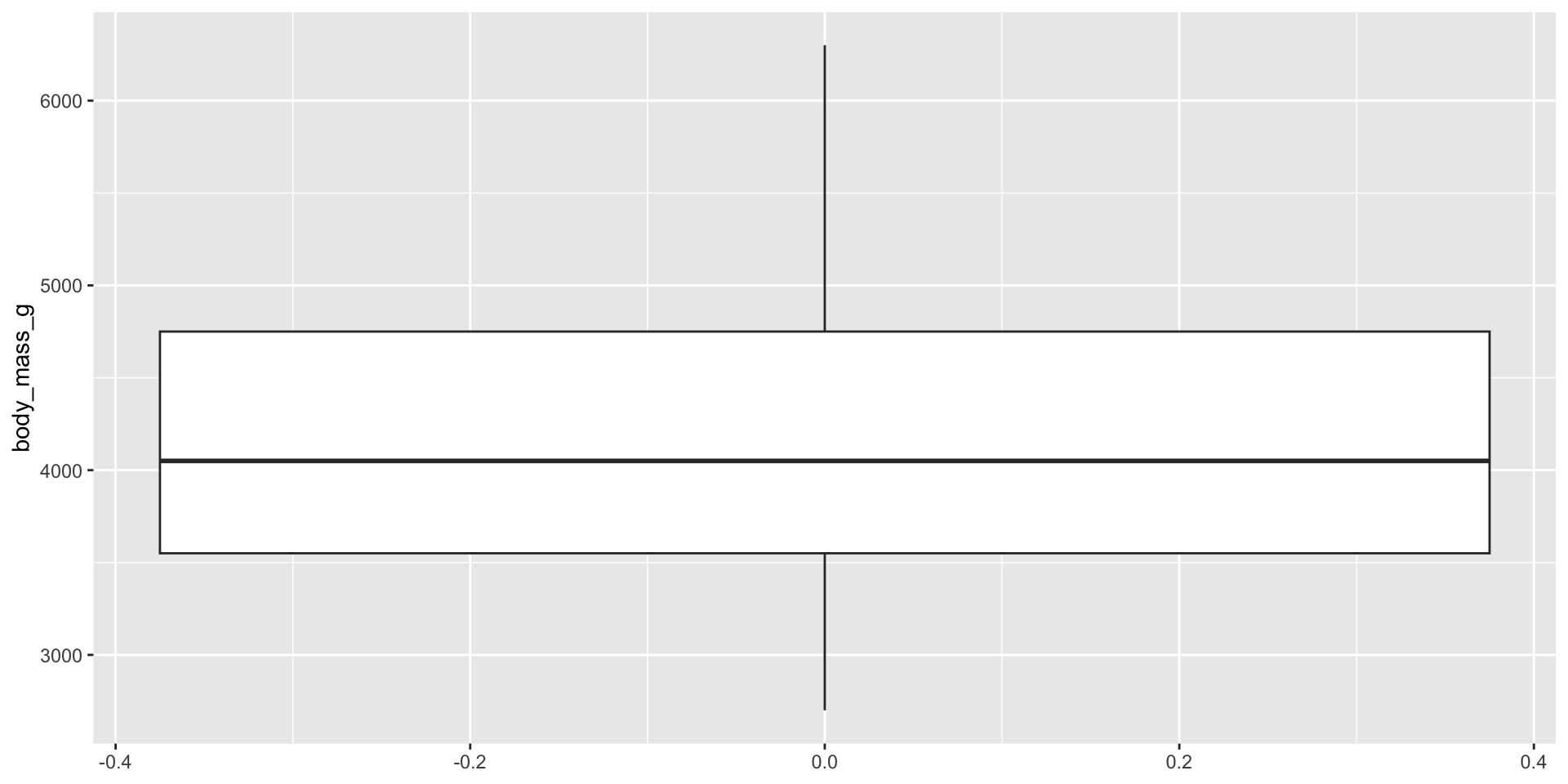

Boxplot 1

ggplot(penguins) +
  geom_boxplot(aes(y = body_mass_g))

Notes

  • aes() can be defined for the whole plot or in the geom
  • first arguments to aes() are x and y (don’t need to name them if using them in that order)

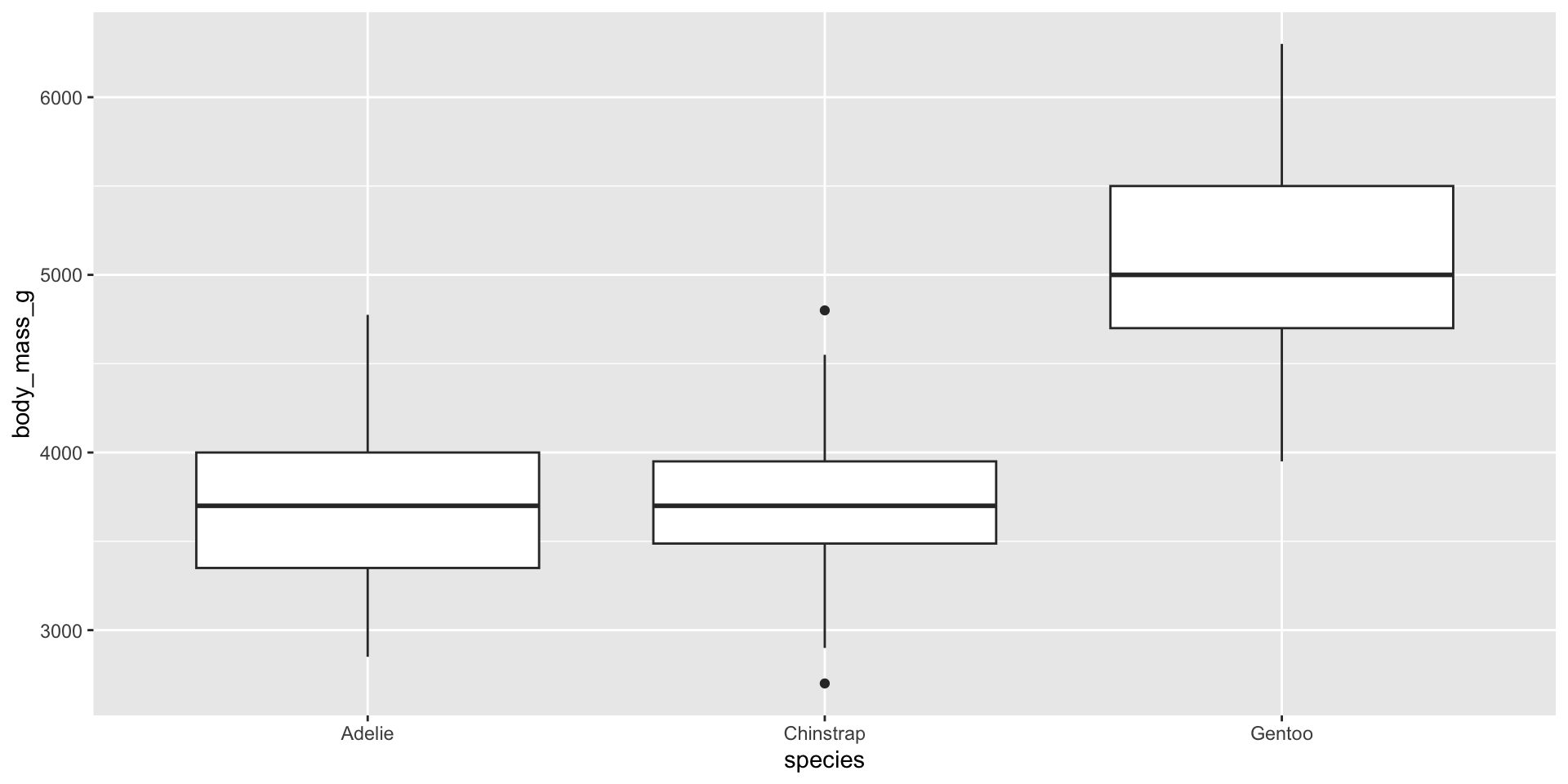

Boxplot 2

ggplot(penguins) +
  geom_boxplot(aes(species, body_mass_g))

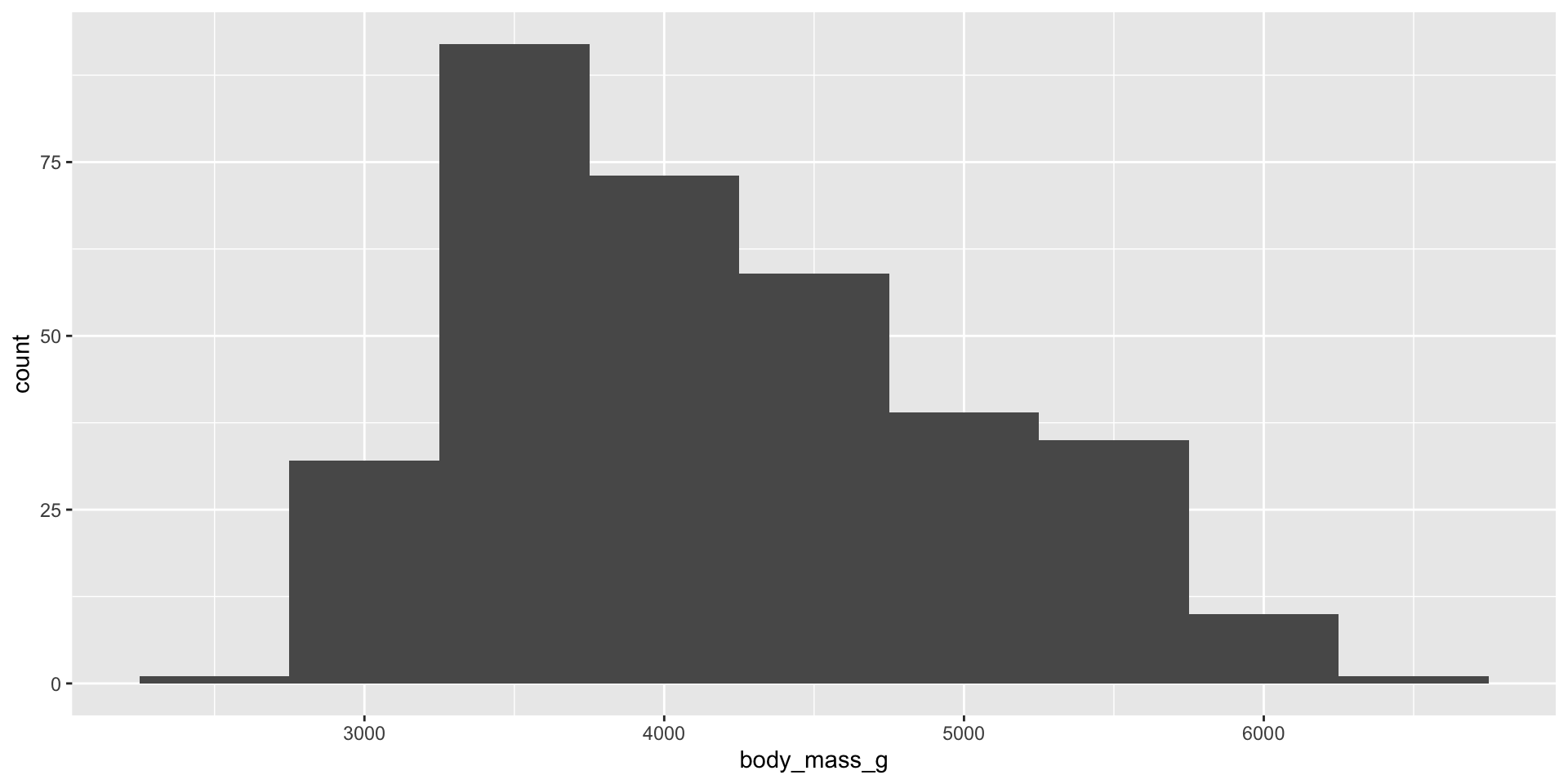

Histogram

ggplot(penguins) +
  geom_histogram(aes(body_mass_g),
                 binwidth = 500)

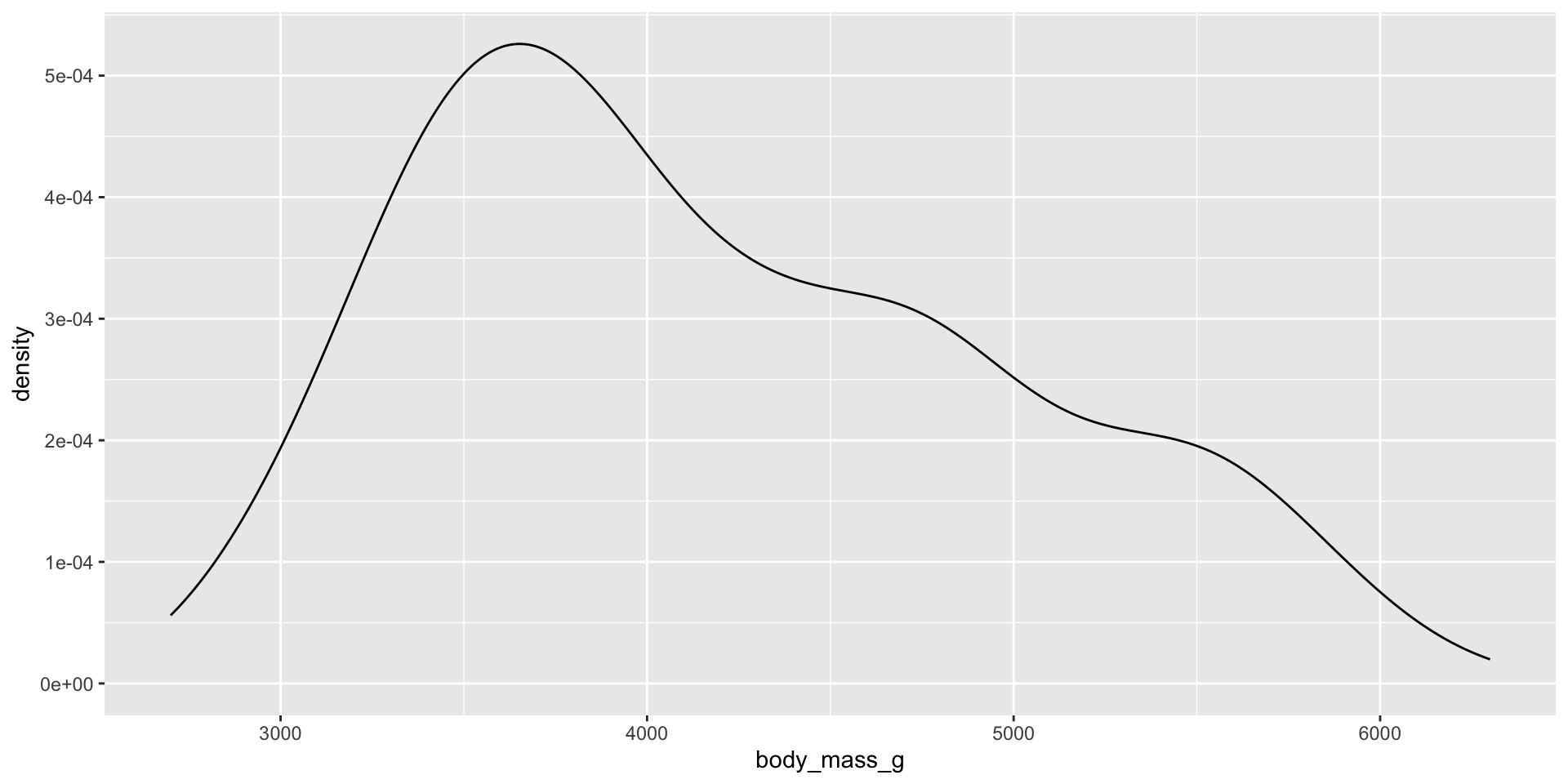

Density

ggplot(penguins) +
  geom_density(aes(body_mass_g))

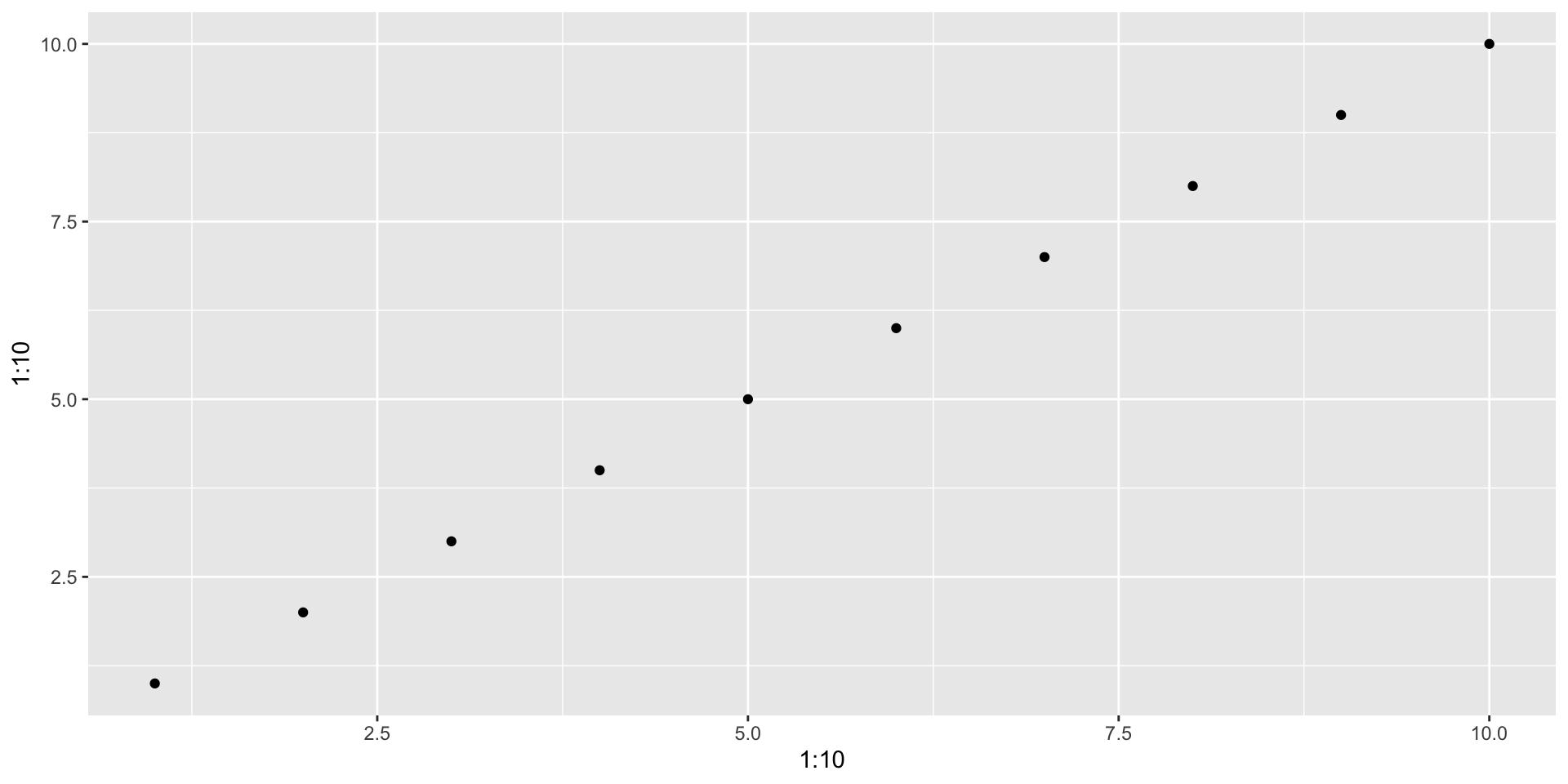

Scatterplot with vectors

ggplot(data = NULL, aes(x = 1:10, y = 1:10)) +
  geom_point()

Extensions

See extensions at https://exts.ggplot2.tidyverse.org/gallery/

Inspiration

R can be used to make incredible data visualisations.

Check out the galleries of these data viz practitioners working with ggplot2:

Also, #TidyTuesday on Mastodon is a great source for further inspiration

ggplot2 resources

Data visualisation resources

Books about greating good data viz:

Plots in RStudio

Viewing and saving plots in RStudio

In RStudio, graphs are displayed in the Plots window. The plot is sized to fit the window and will be rescaled if the size of the window is changed.

Back and forward arrows allow you to navigate through graphs that have been plotted.

Plots can be saved in various formats using the Export drop down menu, which also has an option to copy to the clipboard.

DEMO

Tables

Getting started with tables

We’re just going to scratch the surface of this today.

We’ll be using the gt and gtsummary packages, but there are many of other.

Here’s a good overview of many different packages.

gt

gt is an R package to create tables. It provides a grammar of tables.

The gt philosophy: we can construct a wide variety of useful tables with a cohesive set of table parts. It all begins with table data (be it a tibble or a data frame). You then decide how to compose your gt table with the elements and formatting you need for the task at hand. Finally, the table is rendered by printing it at the console, including it in an R Markdown document, or exporting to a file using gtsave()

Parts of a gt table

From https://gt.rstudio.com

Getting started

library(gt)

# Define the start and end dates for the data range
start_date <- "2010-06-07"
end_date <- "2010-06-14"

# Create a gt table based on preprocessed `sp500` table data
sp500 |>
  dplyr::filter(date >= start_date & date <= end_date) |>
  dplyr::select(-adj_close) |>
  gt() |>
  tab_header(
    title = "S&P 500",
    subtitle = glue::glue("{start_date} to {end_date}")
  ) |>
  fmt_currency() |>
  fmt_date(columns = date, date_style = "wd_m_day_year") |>
  fmt_number(columns = volume, suffixing = TRUE)

Getting started

S&P 500
2010-06-07 to 2010-06-14
date open high low close volume
Mon, Jun 14, 2010 $1,095.00 $1,105.91 $1,089.03 $1,089.63 4.43B
Fri, Jun 11, 2010 $1,082.65 $1,092.25 $1,077.12 $1,091.60 4.06B
Thu, Jun 10, 2010 $1,058.77 $1,087.85 $1,058.77 $1,086.84 5.14B
Wed, Jun 9, 2010 $1,062.75 $1,077.74 $1,052.25 $1,055.69 5.98B
Tue, Jun 8, 2010 $1,050.81 $1,063.15 $1,042.17 $1,062.00 6.19B
Mon, Jun 7, 2010 $1,065.84 $1,071.36 $1,049.86 $1,050.47 5.47B

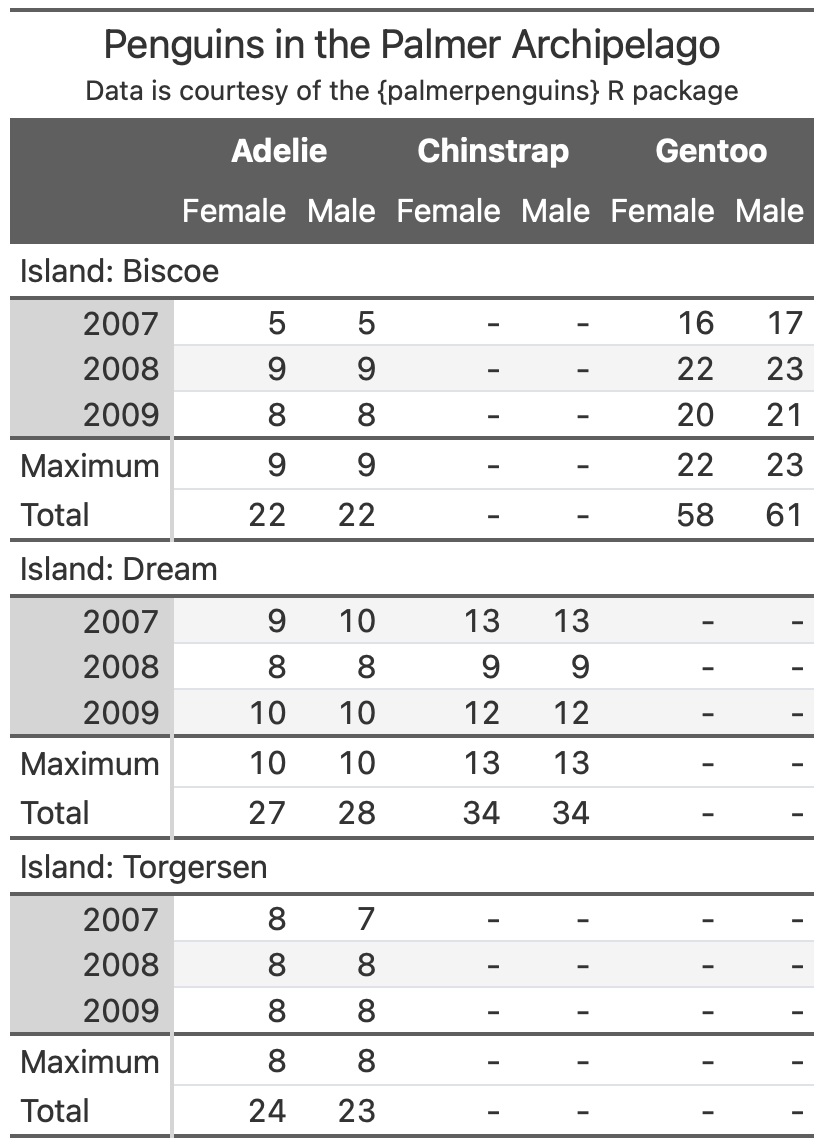

An example

From Albert Rapp’s gt book

Resources

See the article Case Study: gtcars for a thorough example of gt’s capabilities.

See also Albert Rapp’s book on gt.

Your turn!

The {gt} package comes with several built-in datasets, including exibble, a toy example tibble.

Install the {gt} package, look at exibble, then create a table of the data using {gt}.

How good can you get it looking? You can consult the reference section on the {gt} website to see all the options available.

Guidelines for better tables

Having the technical know-how to code tables is one thing, making them look good and such that the reader can easily read the data is another!

Highly recommend this Tom Mock guide, based on Jon Schwabish’s original. It covers guidelines for making better tables, and shows how to implement them in gt. It demonstrates even more of what gt can do than the article on the previous slide.

gtsummary

gtsummary extends the gt package and is used for summarising tables and working with statistical model summaries.

gtsummary example 1: data

library(gtsummary)
# make dataset with a few variables to summarize
trial2 <- trial |> select(age, grade, response, trt)

head(trial2)
# A tibble: 6 × 4
    age grade response trt
  <dbl> <fct>    <int> <chr>
1    23 II           0 Drug A
2     9 I            1 Drug B
3    31 II           0 Drug A
4    NA III          1 Drug A
5    51 III          1 Drug A
6    39 I            0 Drug B

gtsummary example 1: code

# summarize and augment the data
summary_table <-
  tbl_summary(
    trial2,
    by = trt, # split table by group
    missing = "no" # don't list missing data separately
  )  |>
  add_n() |> # add column with total number of non-missing observations
  add_p() |> # test for a difference between groups
  modify_header(label = "**Variable**") |> # update the column header
  bold_labels()

gtsummary example 1: output

Variable N Drug A
N = 981		 Drug B
N = 1021		 p-value
Age 189 46 (37, 60) 48 (39, 56)
Grade 200


    I
35 (36%) 33 (32%)
    II
32 (33%) 36 (35%)
    III
31 (32%) 33 (32%)
Tumor Response 193 28 (29%) 33 (34%)
1 Median (Q1, Q3); n (%)

gtsummary example 2: code

mod1 <- glm(response ~ trt + age + grade, trial, family = binomial)

regression_tab <- tbl_regression(mod1, exponentiate = TRUE)

gtsummary example 2: output

Characteristic OR1 95% CI1 p-value
Chemotherapy Treatment


    Drug A — —
    Drug B 1.13 0.60, 2.13 0.7
Age 1.02 1.00, 1.04 0.10
Grade


    I — —
    II 0.85 0.39, 1.85 0.7
    III 1.01 0.47, 2.15 >0.9
1 OR = Odds Ratio, CI = Confidence Interval

Table inspiration

The winners of the RStudio/Posit Table Contest

Contest does not appear to have been held in 2023.
