Package foundations

R package development workshop

Heather Turner and Ella Kaye

Department of Statistics

June 26, 2024

Overview

• Why write a package?
• Package structure and state
• Package development setup
• Creating a package with a working function

Why write a package?

Why write a package?

• You want to generalise code
• You want to document code
• You want to test code
• You want to share code
• You want to create impact from your work

Script vs package

R script	Package
One-off data analysis	Provides reusable components
Defined by .R extension	Defined by presence of DESCRIPTION file
library() calls	Imports defined in NAMESPACE file
Documentation in # comments	Documentation in files and Roxygen comments
Run lines or source file	Install and restart

reusable components: typically functions, but could also be R markdown template, Shiny app, data

Package structure and state

Package structure

An R package is developed as a directory of source code files.

The names of files and directories must follow the specification laid out in the Writing R Extensions manual - we’ll cover the main components in this workshop.

Directory tree for an example RStudio package project:

mypackage
├── DESCRIPTION
├── NAMESPACE
├── R
└── mypackage.Rproj

Package states

• source
• bundled
• binary
• installed
• in-memory

source

What you create and work on.

Specific directory structure with some particular components e.g., DESCRIPTION, an /R directory.

Package states

• source

• bundled
• binary
• installed
• in-memory

bundled

Package files compressed to single .tar.gz file.

Also known as “source tarballs”.

Created by command line tool R CMD build

Unpacked it looks very like the source package.

In the rare case that you need to make a bundle from a package you’re developing locally, use devtools::build(). Under the hood, this calls pkgbuild::build() and, ultimately, R CMD build, which is described further in the Building package tarballs section of Writing R Extensions.

Package states

• source
• bundled

• binary
• installed
• in-memory

binary

Compressed copy of the package in installed form.

Also a single file.

Platform specific: .tgz (Mac) .zip (Windows).

Package developers submit a bundle to CRAN; CRAN makes and distributes binaries.

A package in binary form is Platform specific. If you write a package for distribution on CRAN, you submit a bundle to CRAN then CRAN makes and distributes binaries

install.packages() is usually downloading the binary

To understand the difference between package bundle and a package binary see https://r-pkgs.org/package-structure-state.html

Package states

• source
• bundled
• binary

• installed
• in-memory

installed

A directory of files in a library directory.

Any C/C++/Fortran code is in compiled form.

Help files, code and optionally data are in database form.

install.packages() can install from source or from a binary

Package states

• source
• bundled
• binary
• installed

• in-memory

in-memory

If a package is installed, library() makes its function available by loading the package into memory and attaching it to the search path.

Building/Installing Packages from Source

There are various reasons we may wish to build or install from source:

• Installing a CRAN package where a binary has not yet been built for the latest version.
• Installing a package from GitHub/other version-controlled source code repository, e.g.

remotes::install_github("r-lib/revdepcheck")

• Installing our own package from the source code or building it to submit to CRAN.

If the package includes C/C++/Fortran code, we will need a suitable compiler.

Build tools

Covered in the course prerequisites and in Session 6 on R with C++, but put here for completeness

Linux

Debian/Ubuntu:

apt-get update
apt-get install r-base-dev

Fedora/RedHat: should be set up already.

MacOS

Option 1

• Register as an Apple developer (for free)

  • Then, in the terminal:

    xcode-select --install

Option 2

• Install the current release of full Xcode from the Mac App Store
• Within XCode go to Preferences -> Downloads and install the Command Line Tools
• More convenient but installs a lot you don’t need

Windows

• Download the Rtools installer that matches your version of R from https://cran.r-project.org/bin/windows/Rtools/
• Run the installer, Rtools.exe, keeping the default settings.

Package development setup

The setup we’ll be using

We’ll be using the following tools for package development:

• RStudio: to manage and edit the package source code
• git + GitHub: to version control the package source code
• devtools and usethis R packages:
  • devtools for functions supporting the development workflow
  • usethis for setup tasks
  • devtools depends on usethis package
  • Integrated with RStudio: projects, menu items/shortcuts
  • Uses system utilities internally: R CMD utilities bundled with R

Follow along

For the rest of this session, follow along on your own computer to make sure you’re set up for package development and to create our example package.

devtools and usethis

We can use devtools right away to check our system is setup for package development.

install.packages("devtools")

library(devtools)

has_devel()

Your system is ready to build packages!

Installing devtools will also install usethis.

Check you have the latest version of usethis – v2.2.3 – and update if not:

packageVersion("usethis")

[1] '2.2.3'

git sitrep and vaccinate

Ask for a situation report:

usethis::git_sitrep()

• Check that your user name and email are defined, else follow the configuration instructions from a previous Advanced R workshop.

• Check whether you have a PAT

  Personal access token for 'https://github.com': '<discovered>'

It’s also a good idea to vaccinate. This implements best practice by adding files to your global .gitignore:

usethis::git_vaccinate()

Create a GitHub PAT

The usethis package uses personal access tokens (PAT) to communicate with GitHub.

First, make sure you’re signed into GitHub. Then run

usethis::create_github_token()

• Add Note describing the computer or use-case (e.g. personal-macbook-pro-2021, project-xyz)
• Select expiration (recommend default 30 days)
• Check scope (default selection is fine)
• Click ‘Generate Token’
• Important! Copy token to clipboard, do not close window until stored (see next slide)!
• You may want to store token in a secure vault, like 1Password or BitWarden

Store your PAT

Put your PAT into the Git credential store by running the following command and entering your copied PAT at the prompt (assume the PAT is on your clipboard).

gitcreds::gitcreds_set()

• If you don’t have a PAT stored, will prompt you to enter: paste!
• If you do, you will be given a choice to keep/replace/see the password
  • choose as appropriate
  • if replacing, paste!
• run git_sitrep() again to check the PAT has been discovered

More on usethis and GitHub creds

It is well worth reading (and following all the instructions) in the following two usethis vignettes:

• usethis setup
• Managing Git(Hub) Credentials
  • See in particular the section on ongoing PAT maintenance

Create a package!

Package name

Can only contain the characters [A-Z, a-z, 0-9, .]. Some tips:

• Unique name you can easily Google
• Avoid mixing upper and lower case
• Use abbreviations
• Add an r to make unique, e.g stringr
• Use wordplay, e.g. lubridate
• Avoid trademarked names
• Use the available package to check name not taken

For now, we will use animalsounds

Create a package!

usethis::create_package("~/Desktop/animalsounds")

• Be deliberate about where you create your package.

• Do not nest inside another RStudio project, R package or git repo.

• You may want to use a different path!

create_package()

What happens when we run create_package()?

• R will create a folder called animalsounds which is a package and an RStudio project
• restart R in the new project
• create the some infrastructure for your package with the minimal components for a working package
• start the RStudio Build pane

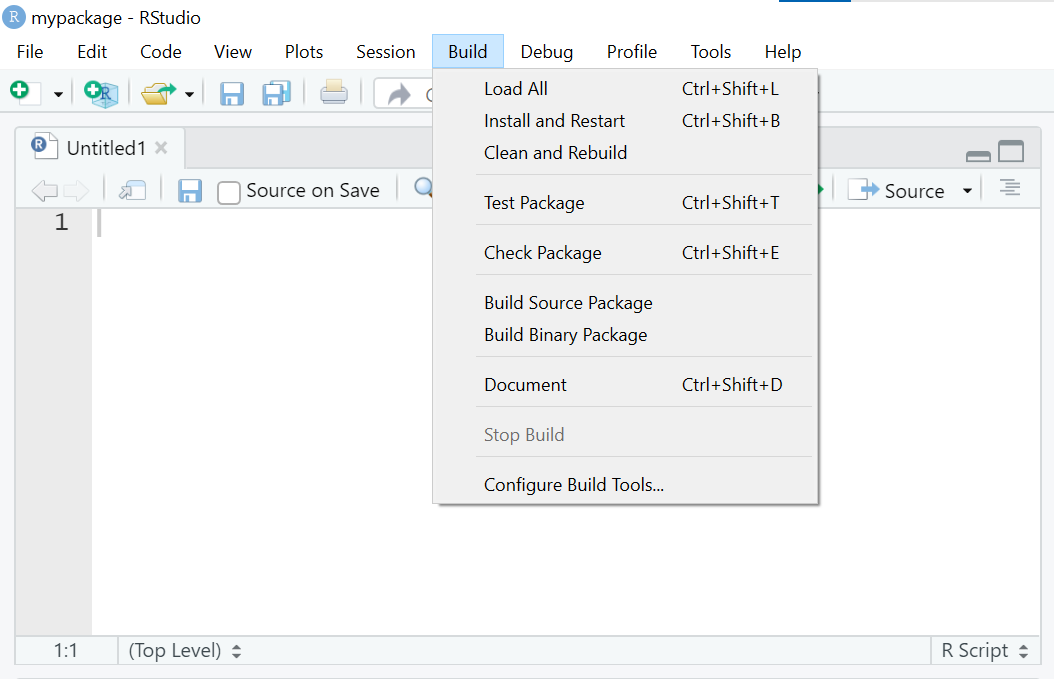

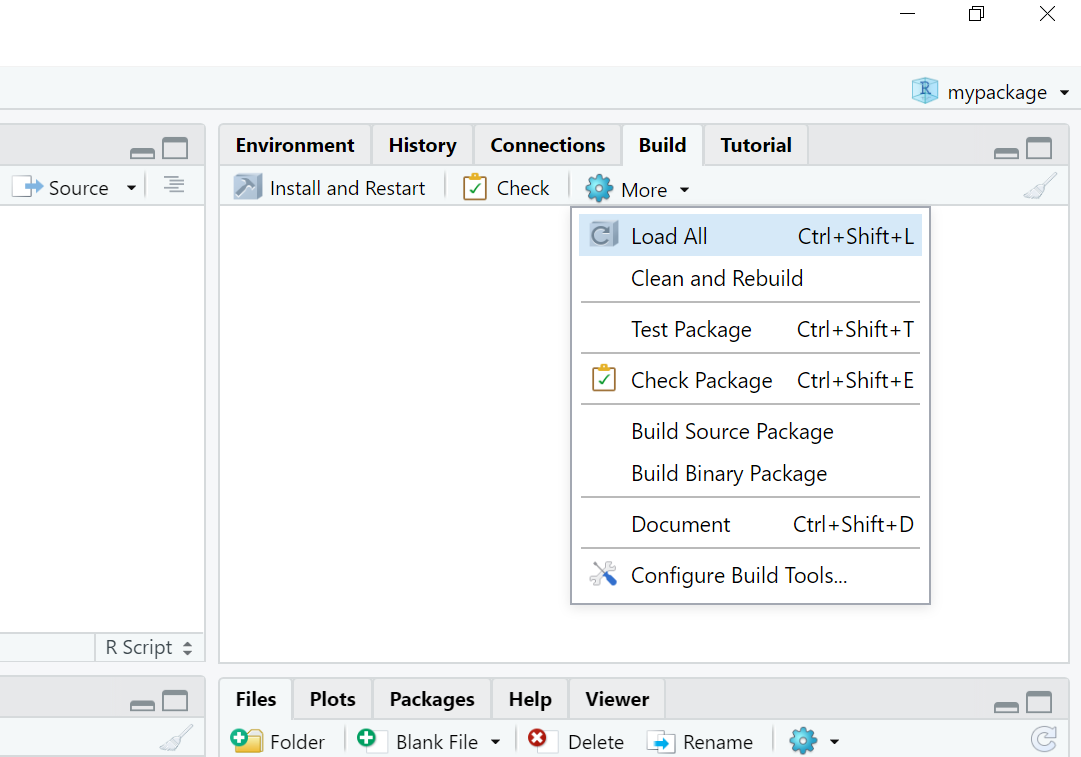

R Studio Build pane/menu

Minimal components

usethis will create the minimal components of a package that we have already seen:

• DESCRIPTION provides metadata about your package.
• NAMESPACE declares the functions your package exports for external use and the external functions your package imports from other packages.
• The /R directory is where we will put .R files with function definitions.

Auxiliary files

usethis also adds some auxiliary files:

• animalsounds.Rproj is the file that makes this directory an RStudio Project.
• .Rbuildignore lists files that we need but that should not be included when building the R package from source.
• .gitignore anticipates Git usage and ignores some standard, behind-the-scenes files created by R and RStudio.

git and GitHub

Now will make our package a version controlled project on our local machine and then put it on GitHub.

• version control, best-practice open-source development

usethis has functions to help with this.

Use git

To make our project a git repository, or ‘repo’, on our local machine we use usethis::use_git()

Make your package a git repo:

usethis::use_git()

use_git() output (part 1)

 ✔ Initialising Git repo
 ✔ Adding '.Rhistory', '.Rdata', '.httr-oauth', '.DS_Store' to  '.gitignore'
 There are 5 uncommitted files:
 * '.gitignore'
 * '.Rbuildignore'
 * 'DESCRIPTION'
 * 'animalsounds.Rproj'
 * 'NAMESPACE'
 Is it ok to commit them?

 1: I agree
 2: Absolutely not
 3: No way

Choose the affirmative option! (The exact options may vary.)

use_git() output (part 2)

√ Adding files
√ Commit with message 'Initial commit'
• A restart of RStudio is required to activate the Git pane
Restart now?

1: Nope
2: Definitely
3: No

Choose the affirmative option! (The exact options may vary.)

You should find the git pane has opened.

Use GitHub

To create a copy on GitHub we use usethis::use_github().

usethis::use_github() # creates a public repo
usethis::use_github(private = TRUE) # private repo (licensing, no Pages)

This takes a local project, creates an associated repo on GitHub, adds it to your local repo as the “origin remote”, and makes an initial “push” to synchronize.

Warwick GitHub

University of Warwick members can use the University’s private GitHub instance, e.g.

usethis::use_github("https://github.warwick.ac.uk")

However, Warwick GitHub does not support GitHub Actions or GitHub Pages, so for packages using your personal account is better – we’ll be using both Actions and Pages later.

Promote private repo for novel package development - link to licensing issue, covered in package documentation session

use_github() output

usethis::use_github()

 ✔ Creating GitHub repository 'Warwick-Stats-Resources/animalsounds'
 ✔ Setting remote 'origin' to 'https://github.com/Warwick-Stats-Resources/animalsounds.git'
 ✔ Setting URL field in DESCRIPTION to  'https://github.com/Warwick-Stats-Resources/animalsounds'
 ✔ Setting BugReports field in DESCRIPTION to  'https://github.com/Warwick-Stats-Resources/animalsounds/issues'
 There is 1 uncommitted file:
 * 'DESCRIPTION'
 Is it ok to commit it?

 1: Nope
 2: For sure
 3: No way

Choose the affirmative option! (The exact options may vary.)

Take a look at the repo on GitHub. There is no /R folder as that folder is empty at the moment!

During the demo, will need to run use_github("Warwick-Stats-Resources") as by default use_github goes to my personal repo

Adding functions

Functions go in an .R file in the /R directory.

There’s a usethis helper for adding .R files!

usethis::use_r("file_name")

usethis::use_r() adds the file extension (you don’t need to).

Use a separate .R file for each function or closely related set of functions, e.g.

• a top-level function and the internal functions it calls
• a family of related functions
• a summary method and its print method

usethis::use_r()

Create a new R file in your package called animal_sounds.R

usethis::use_r("animal_sounds")

The output includes:

• Modify 'R/animal_sounds.R'
• Call `use_test()` to create a matching test file

Ignore the instruction to call use_test() for now – we’ll cover testing later.

Add a function

Put the following toy function into your script:

animal_sounds <- function(animal, sound) {
    stopifnot(is.character(animal) & length(animal) == 1)
    stopifnot(is.character(sound) & length(sound) == 1)
    paste0("The ", animal, " goes ", sound, "!")
}

Don’t try to use the function yet!

Development workflow

In a normal script, you might use:

source("R/animal_sounds.R")

However, for building packages, we need to use the devtools approach.

This will ensure our function has the correct namespace and can find internal functions, functions imported by our package from other packages, etc.

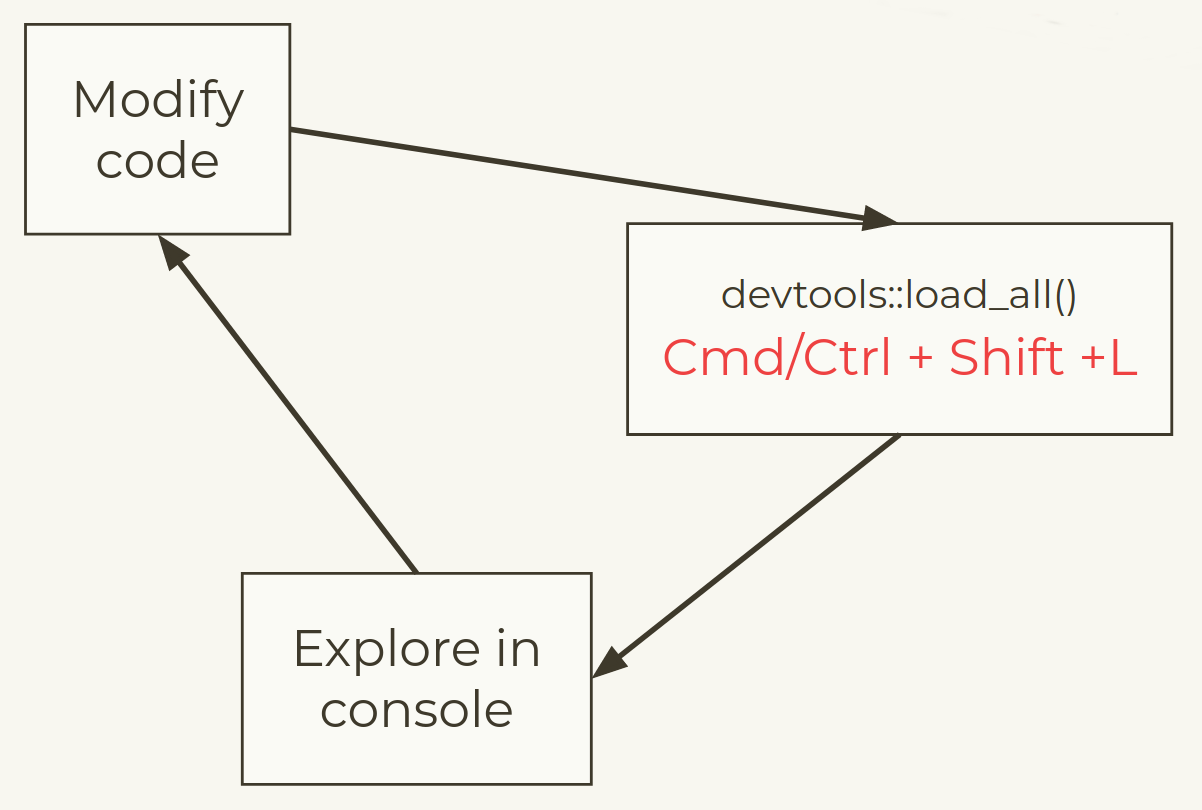

Development workflow

You don’t even need to save your code!

devtools::load_all() simulates package installation so that you can test your function.

Your turn

1. Load all with devtools::load_all() and try calling the animal_sounds() function with appropriate values for animal and sound.
2. Change some tiny thing about your function – maybe the animal “says” instead of “goes”.
3. Load all with devtools::load_all() and try calling the updated function to see the changed behaviour.
4. Add animal_sounds.R so that it is tracked by git. Make a commit with the message Add animal_sounds().
5. Push all your commits from this session.

End matter

References

Wickham, H and Bryan, J, R Packages (2nd edn, in progress), https://r-pkgs.org.

R Core Team, Writing R Extensions, https://cran.r-project.org/doc/manuals/r-release/R-exts.html

License

Licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License (CC BY-NC-SA 4.0).
